Most Choice DD5064 Waterproof 30-60V 2700W 120-250KV 200m Brushless Motor

$72.00 USD

In stock

We are the OEM ODM manufacturer. For bulk orders and custom solutions, please contact us at official@hobbywater.com

We prioritize fast order processing. For in-stock items, orders placed before 4:00 PM (Beijing Time) will be shipped the same day. Standard orders typically ship within one week, while customized orders require approximately 15-30 business days for production and delivery. Delivery times may vary under special circumstances.

We ship to most countries worldwide. However, please ensure compliance with your local import regulations.

For the USA: We offer tax-inclusive shipping options. Expedited orders are shipped via DHL, UPS, or FedEx. Note: DHL does not allow undervaluation.
For other countries: Tax-inclusive shipping is available upon request. Otherwise, orders will be shipped via 4PX by default.

For specific shipping requirements, please contact us in advance.

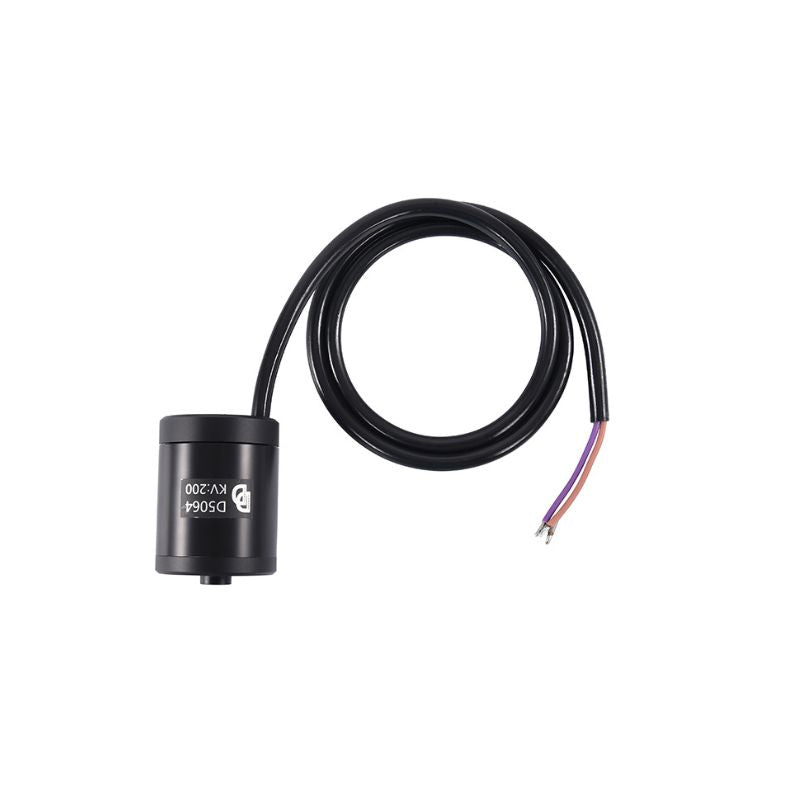

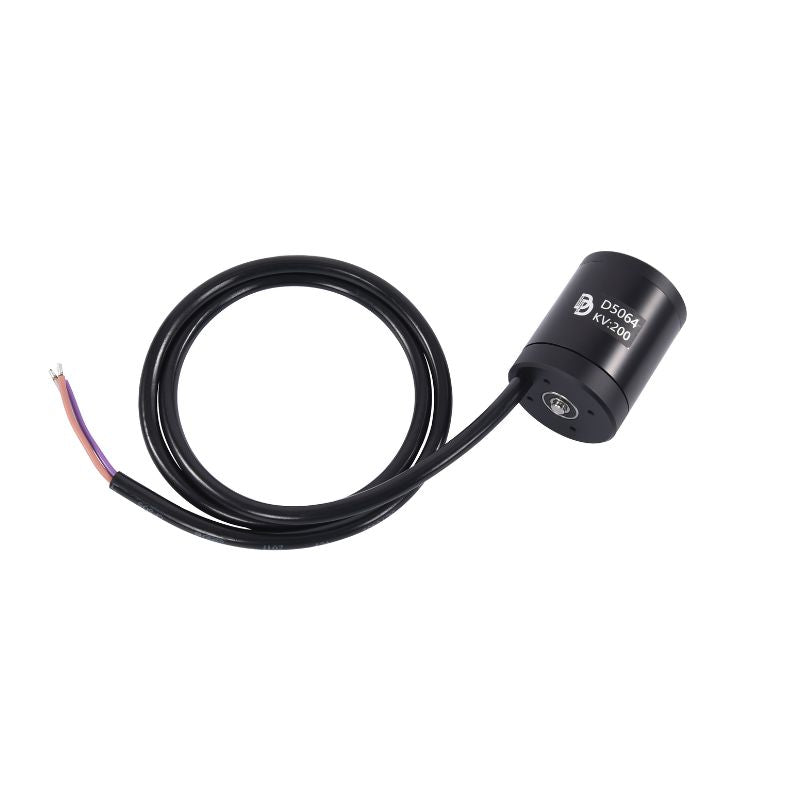

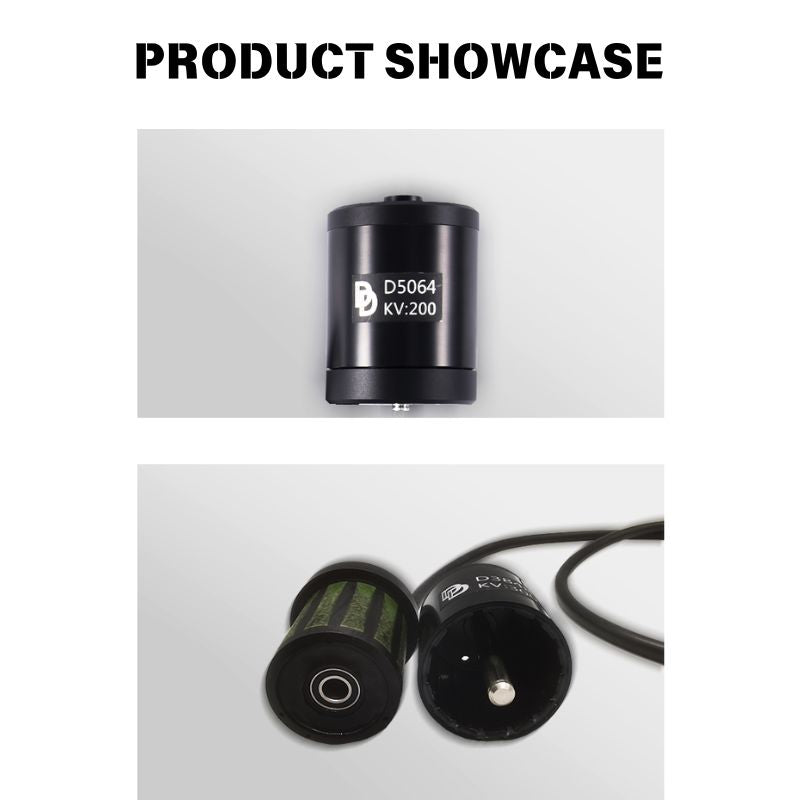

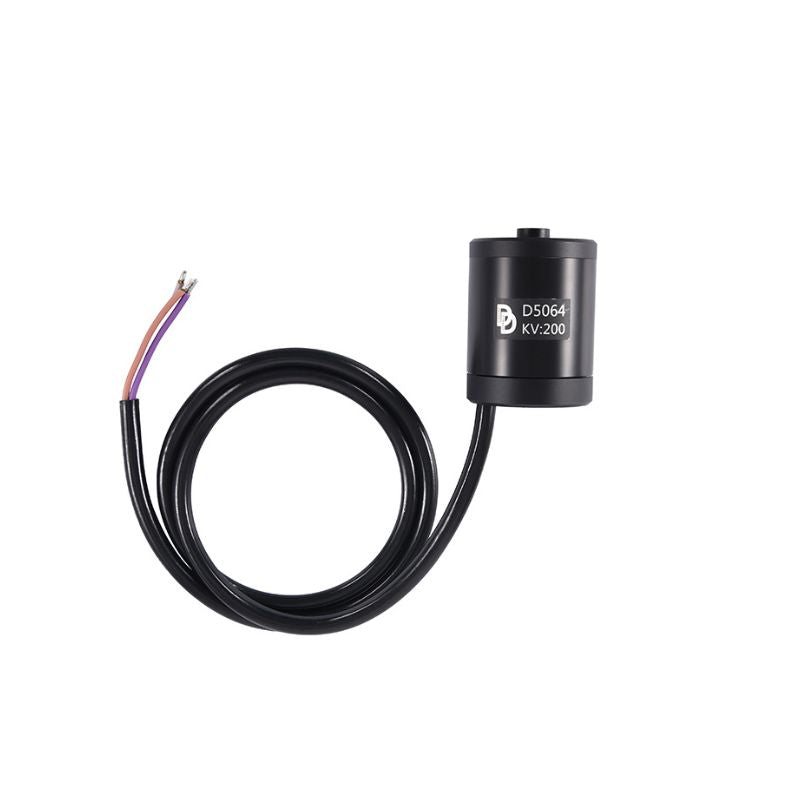

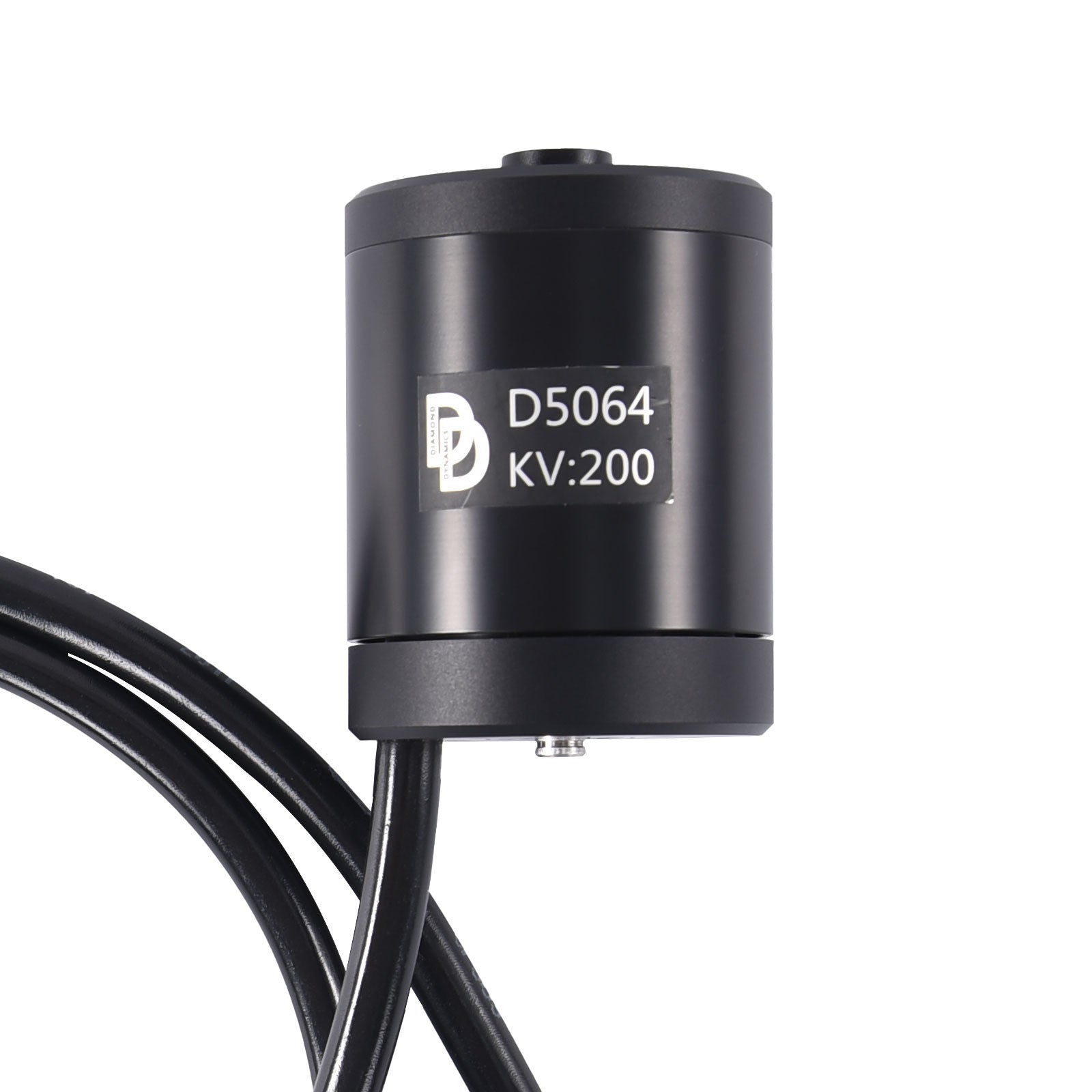

DD5064 Underwater Brushless Motor

The DD5064 is a powerful and highly efficient brushless motor designed for underwater applications, making it ideal for high-power underwater thrusters, electric boats, rescue equipment, underwater robots, and ROVs.

Features

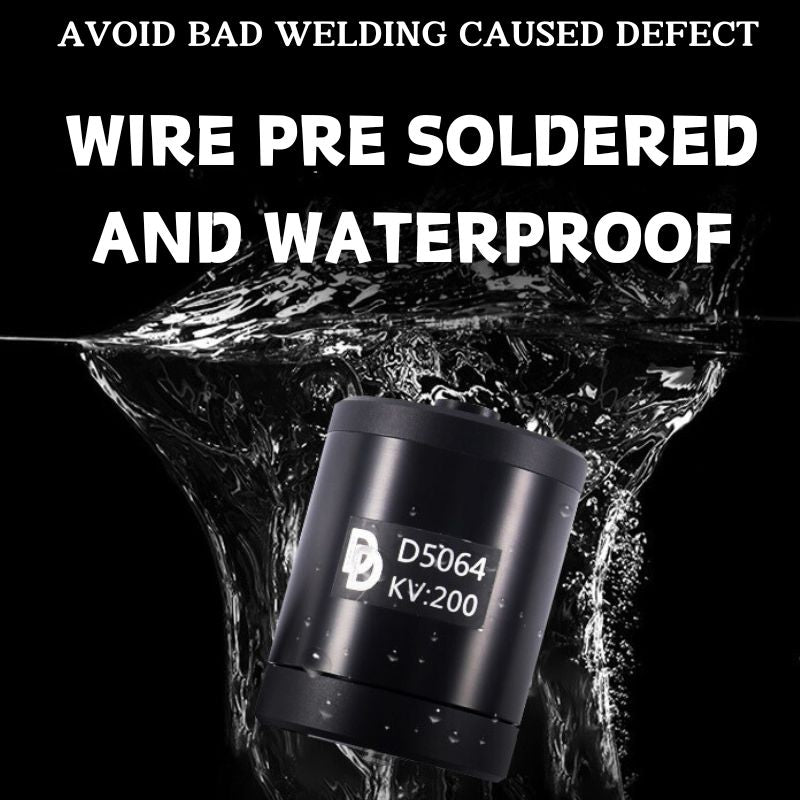

Fully Waterproof Design: Our proprietary encapsulation process ensures the motor is completely waterproof, resistant to corrosion and oxidation.
High-Quality Bearings: Precision bearings significantly enhance the motor's lifespan and performance.
Exceptional Endurance: Operates reliably at depths of up to 200 meters.

Specifications

Model Number: D5064
Size: 50 x 64 mm
Motor KV: 200KV (available options: 125, 150, 170, 250)
Power: 1350W
Max Power: 2700W
Load Current: 90A
Operating Voltage: 30-60V
Rotational Speed Range: 2500 RPM - 7500 RPM
Torque: 2.0 N·m
Max Torque: 4.0 N·m
Poles: 14
Insulation Class: B
Cable length: 90cm around
Waterproof Depth: 200m
Weight: 590g

Material:

Shaft: Stainless Steel 420 (AISI 420)
Bearing: Stainless Steel 420 (AISI 420)

Upgrade Recommendation:
420 stainless steel offers good hardness, wear resistance, and moderate corrosion protection—suitable for most standard applications. Upgrading is generally not necessary unless your operation involves:

High humidity or salt spray environments → consider 440C or ceramic bearings
Extreme high-speed or heavy-load conditions → consider tool steel shaft + ceramic hybrid bearings
Strong acid/alkali exposure → consider coated bearings (e.g., PTFE or DLC coating)

For typical use, the default 420 stainless steel configuration is cost-effective and reliable. Please contact us if you need a custom upgrade.

KV Ratings and Performance

KV Rating	Voltage (DC)	Current (A)	Max Current (A)
125KV	60V	23A	45A
150KV	50V	27A	54A
170KV	45V	30A	60A
200KV	38V	36A	71A
250KV	30V	45A	90A

Please note that the appearance and dimensions of the D5064 motor are the same for all KV options .

Customization Options

We offer customization for the following components:

Motor Length
Shaft Type
Voltage
Rotational Speed
Power Rating
Lead Wires

Shaft Configuration: no modification needed - standard mounting holes will work

Unfortunately, we don’t have a matched propeller for this model. If you’re interested, we recommend considering 3D printing, similar to the D2838 with its propeller.

If you’re looking for a more powerful motor, we suggest the 54135.

However, the TD30E is our most popular option if you don’t mind trying that!

Size chart of 5064
