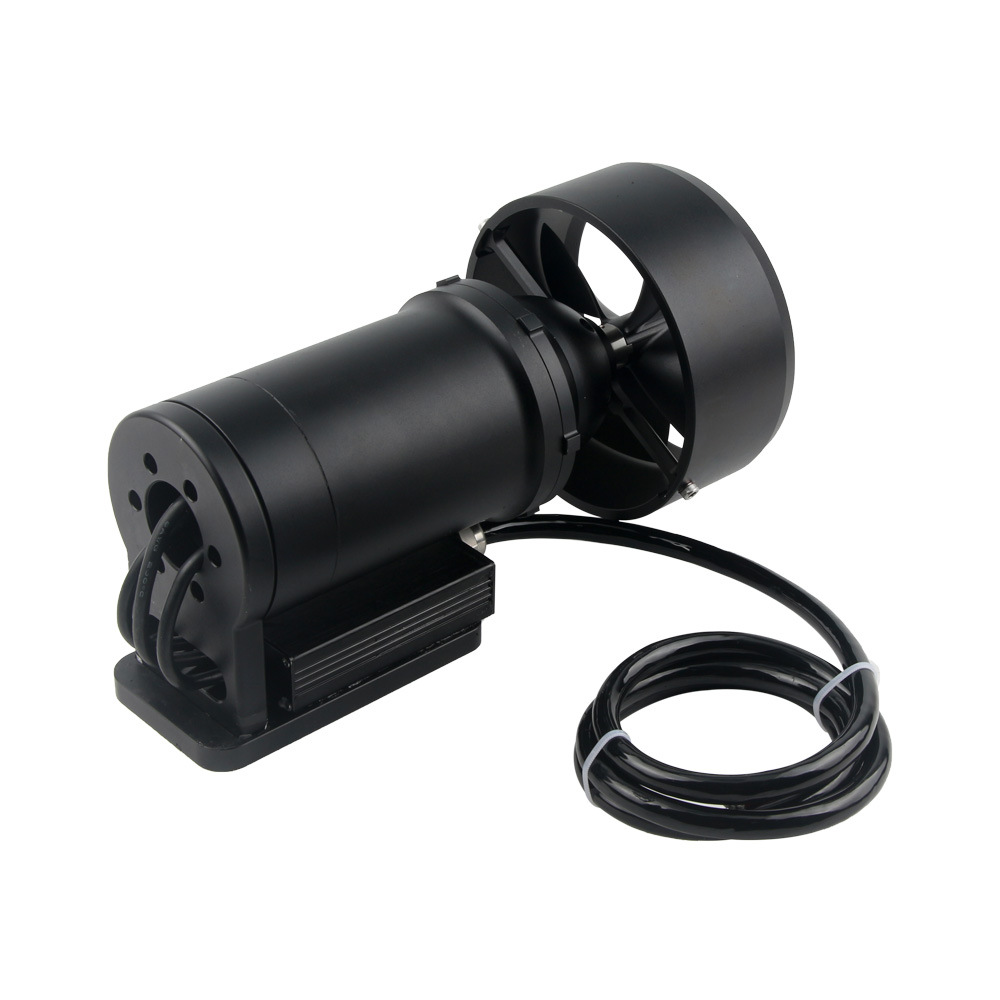

TD40/E 50V 3500W Underwater Thruster for Electric Boats & Yachts - 40kg Thrust

TD40/E 50V 3500W Underwater Thruster for Electric Yacht Utility Boat

Td40E with ESC ,No other BEC needed.

environment: seawater/freshwater

Please kindly note the weight of single TD40E is 6.3kg around.

This thruster is ideal for those who need reliable and efficient underwater propulsion in demanding environments.

Product Description:

Model: TD40 with ESC
Voltage Range: 12~50.2V
Max Current: 70A
Max Thrust: 40kg
Power: 3500W
Cable Length: 100cm
Cable thickness: 10mm
Weight: 6.3Kg
Package Weight: 7Kg
Package Size: 25*15*15CM
Waterproof Depth: >100m

Applications:
Perfect for electric inflatable boats, surfboards, electric Yacht,fishing boats, trawlers, unmanned boats, submarines, water rescue equipment, and water circulation systems.

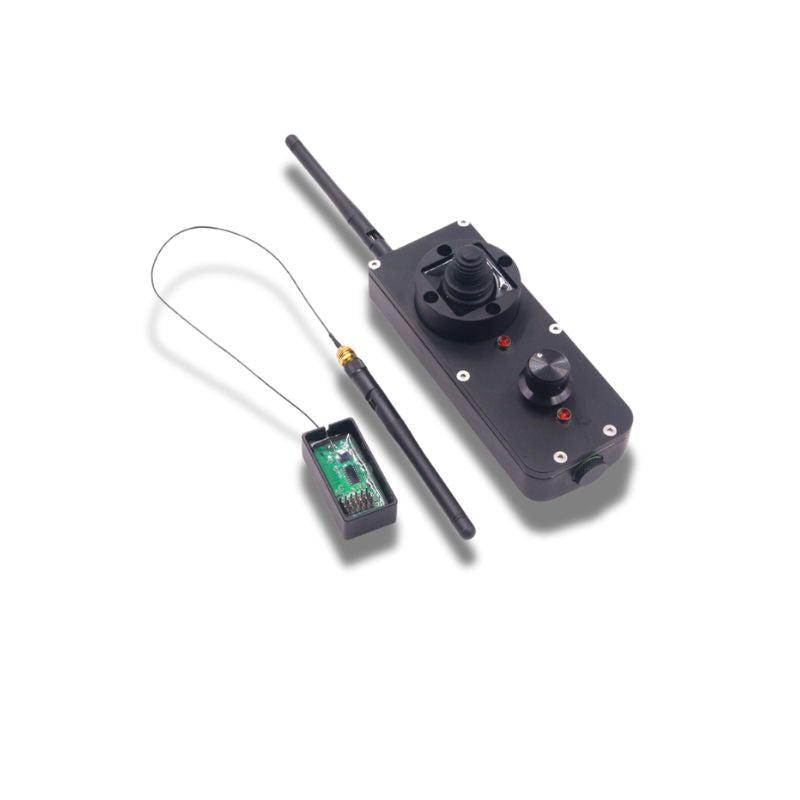

Y2B 2.4GHz Wireless Remote Control Receiver Set

Key Features:

Waterproof: Durable and safe for various environments.
Mixed Differential Control: Smooth and precise operation with CH3+CH4 mixed channels.
One-Button Emergency Stop: Quickly stop for added safety.
Rechargeable: Convenient and eco-friendly.
High-Quality Materials: Built with sturdy plastic for durability.
Specifications:

Control Channels:
Mixed: CH3 + CH4
Independent: CH1, CH2
Control Range: Up to 10 meters (effective distance).
Material: Plastic
Color: As shown

Remote-1

Shell Design:

Material: 6061 aerospace aluminum

Processing: CNC machined, anodized

Features: Durable, wear-resistant, corrosion-resistant

Antenna Design:

Feature: Extended antennas

Purpose: Increased control distance

Control Range:

Land: 580 meters (open land)

Water: 300 meters (depending on environment and wave size)

Charging Design:

Battery: Built-in

Charging Port: Type-C with waterproof cover

Charging Time: 2.5 hours

Indicator: Light turns off when fully charged

Weight: 727g

Wiring Definition:

Channel 1 and 2:

Mode: Mixed control

Compatible: Dual-motor differential steering

ESC Compatibility:

Bidirectional ESC: Supports forward, reverse, and turning

Unidirectional ESC: Does not support reverse

Waterproof-remote1

Waterproof Remote-2

DD-2M-XY-L

Product Features:

Superior Stability Over Wireless:

Ensures reliable operation by avoiding wireless signal interference.

Fully Waterproof Design:

Suitable for use in wet or submerged environments—even if dropped in water, the device remains protected.

Retractable Spring Cable:

Flexible extension up to 3 meters for convenient operation.

PWM Signal Drive Compatibility:

Supports both brushed and brushless motors with PWM control.

Advanced Control Functions:

Forward/Reverse, Differential Steering, and Cruise Control for precise movement management.

External 5V Power Input:

Stable voltage supply ensures continuous operation without battery life concerns.

Ideal for applications requiring durable, interference-free, and long-range wired motor control.
