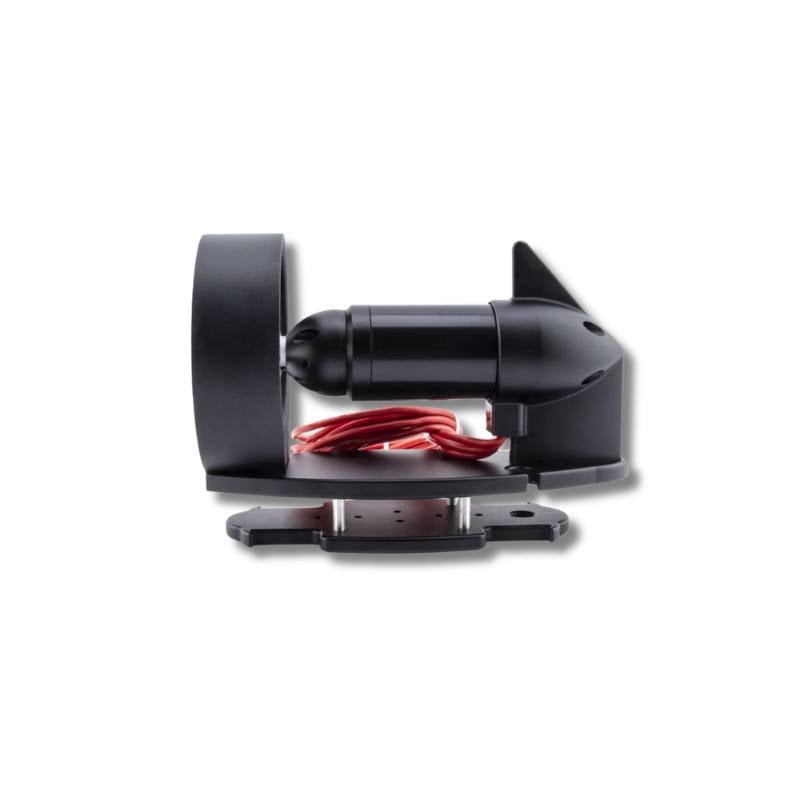

TD20 1200W 20KG Underwater Thruster

TD20 1200W 20KG Underwater Thruster

Prezzo di listino $399.00
Prezzo di listino Prezzo scontato $399.00
In offerta Esaurito
Spese di spedizione calcolate al check-out.

SKU:TD20-CW

Style

Explore the Versatile Hobbywater TD20 Series Underwater Motors

Introducing the Hobbywater TD20 series, featuring robust 1200W motors designed for electric dinghies, fishing boats, water rescue equipment, ROVs, and more. These motors are engineered with high-strength materials and advanced technology for reliable performance in various aquatic environments.

Key Features and Advantages:

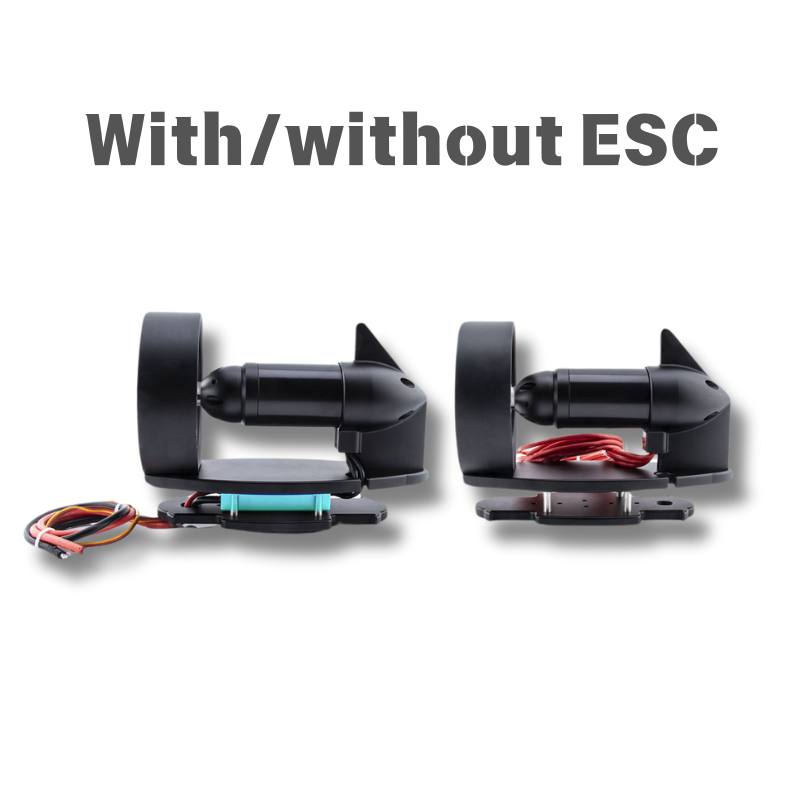

TD20 (Without ESC)

Ideal for applications where external ESC control is preferred.

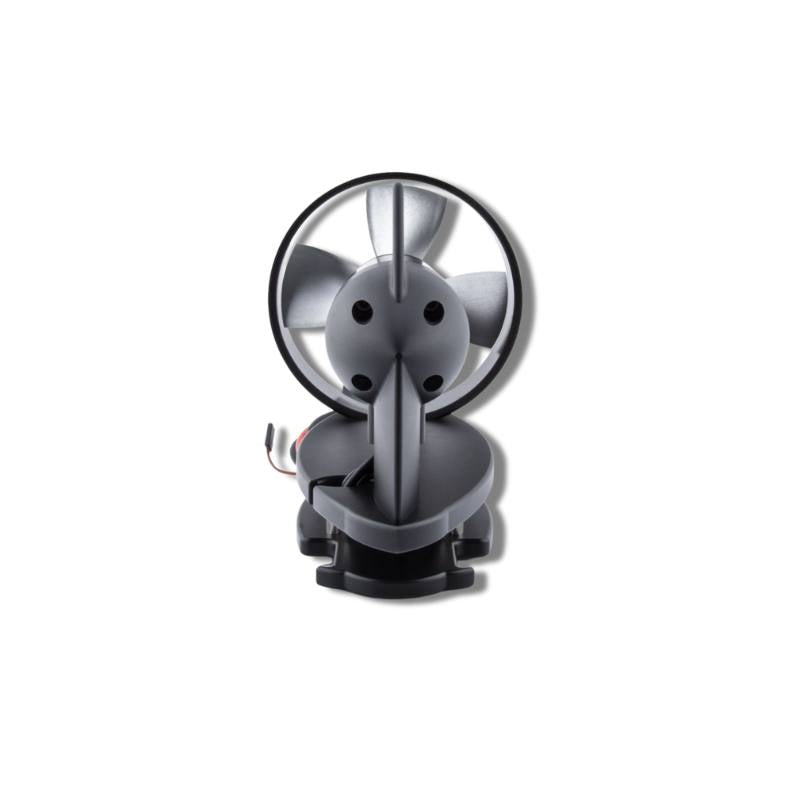

High-strength composite propeller matched for efficiency.

Full waterproof technology ensures durability.

High-precision bearings for extended motor life.

Modularized base for versatile assembly options.

TD20E (With Integrated ESC)

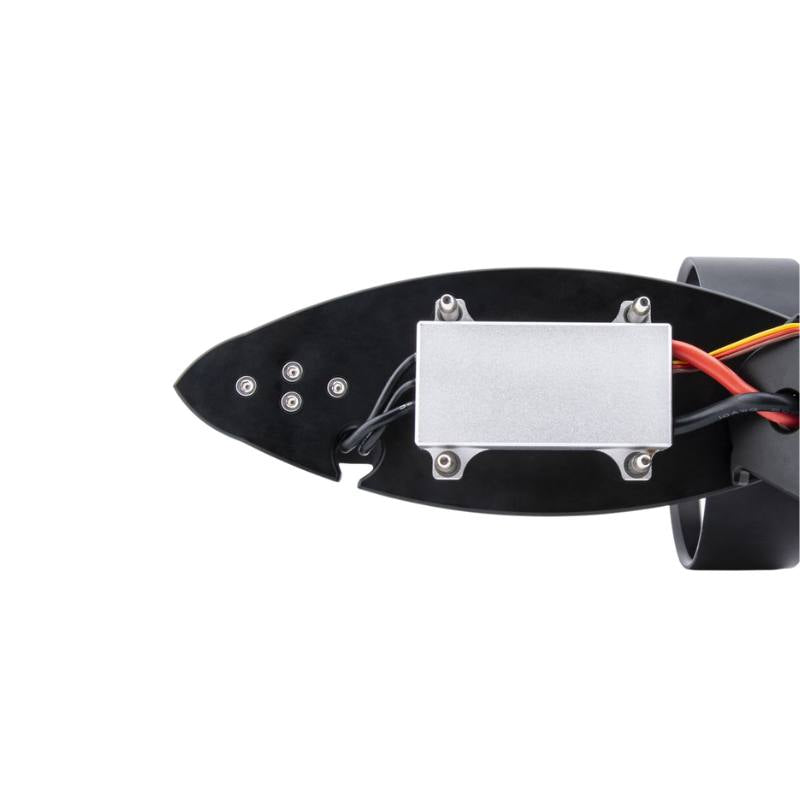

Includes a bi-directional fully waterproof ESC.

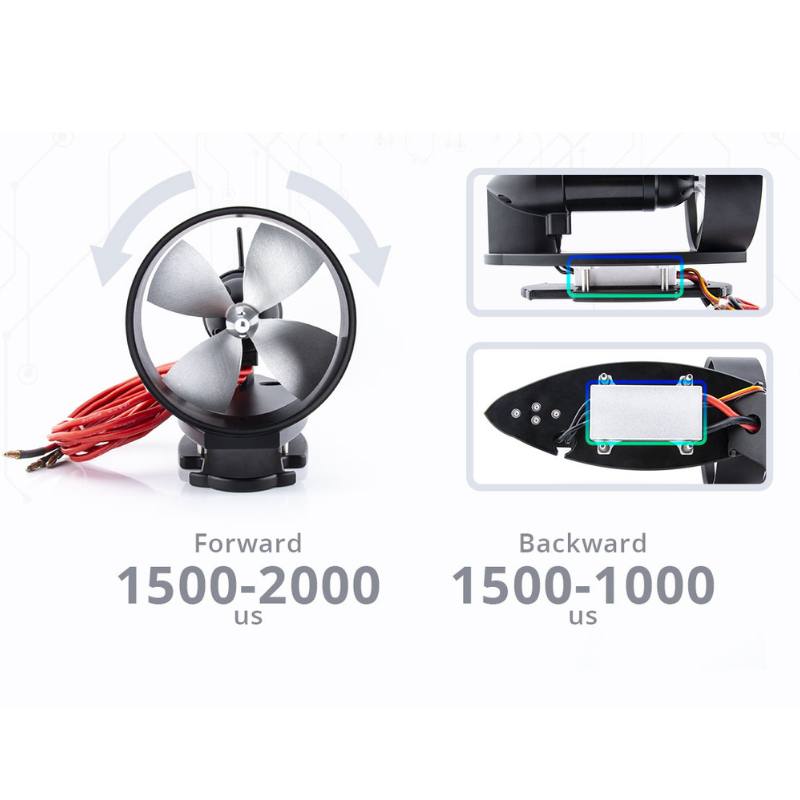

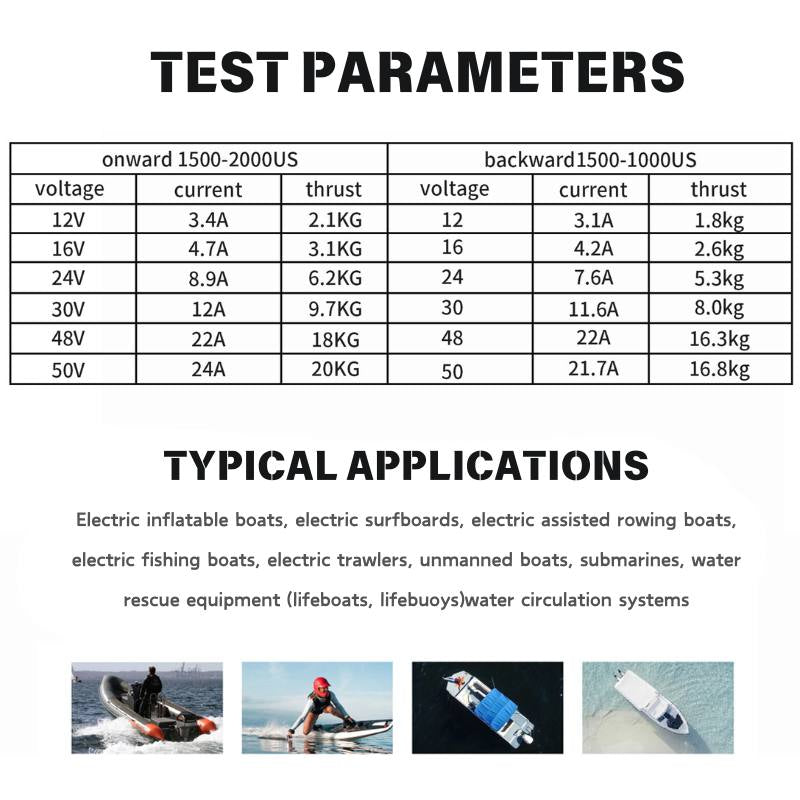

Precise PWM control (Forward: 1500-2000us, Backward: 1500-1000us).

Complete encapsulation protects against water, dust, and corrosion.

Enhanced motor efficiency with a reinforced metal propeller.

Easy installation and adaptable design for various applications.

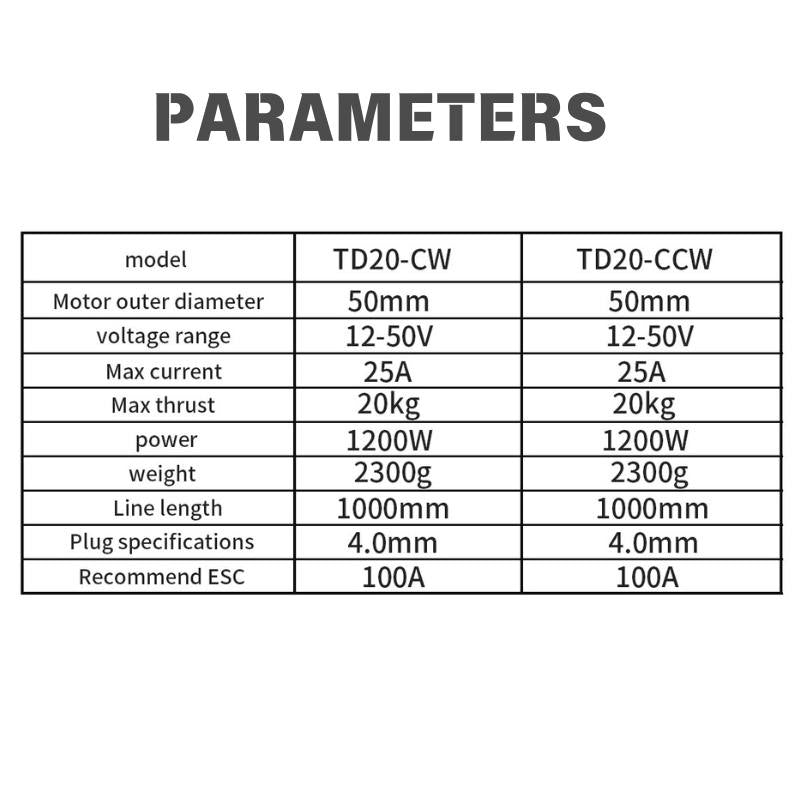

Specifications:

TD20

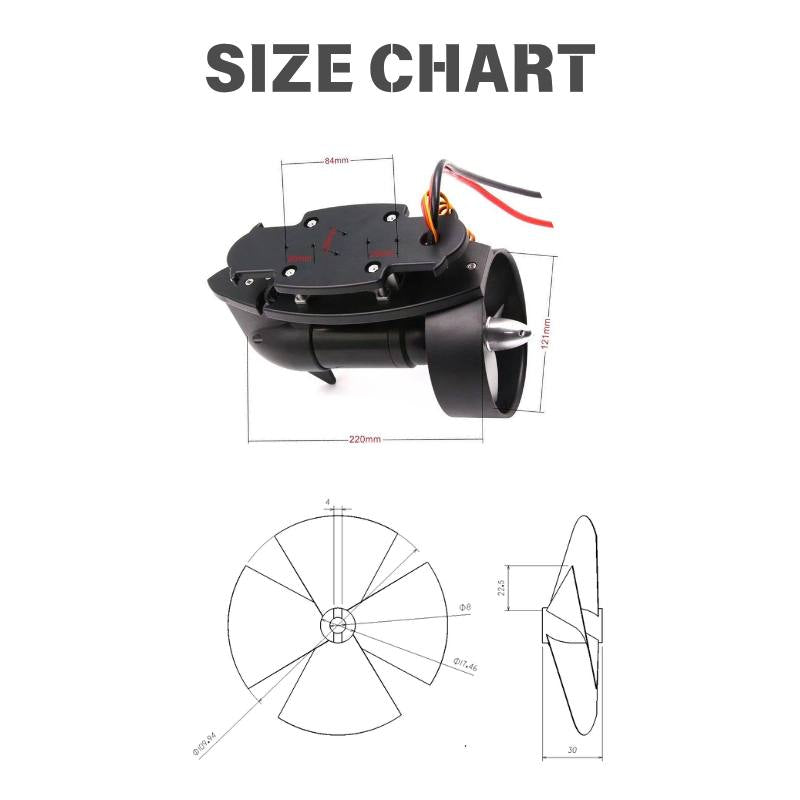

  Outer Diameter: 121mm

  Voltage Range: 12~50V

  Max Current: 25A

  Max Thrust: 20kg

  Power Output: 1200W

  Cable Length: 1000mm

  Weight: 2300g

  Package Weight: 2500g

  Package Size: 25*15*15CM

TD20E

  Outer Diameter: 121mm

  Voltage Range: 12~50V

  Max Current: 25A

  Max Thrust: 20kg

  Power Output: 1200W

  ESC: Bi-directional fully waterproof ESC included

  Cable Length: 1000mm

  Weight: 2300g

  Package Weight: 2500g

  Package Size: 25*15*15CM

Choose the Hobbywater TD20 series that fits your needs. Whether opting for the TD20 for external ESC control or the TD20E with integrated ESC, these motors deliver exceptional performance and durability for your underwater ventures.
