10Mpa Optical PC Dome End Cup of Underwater ROV Dome Lens(1pcs)

10Mpa Optical PC Dome End Cup of Underwater ROV Dome Lens(1pcs)

49 total reviews

Regular price $59.00
Regular price Sale price $59.00
Sale Sold out
Shipping calculated at checkout.

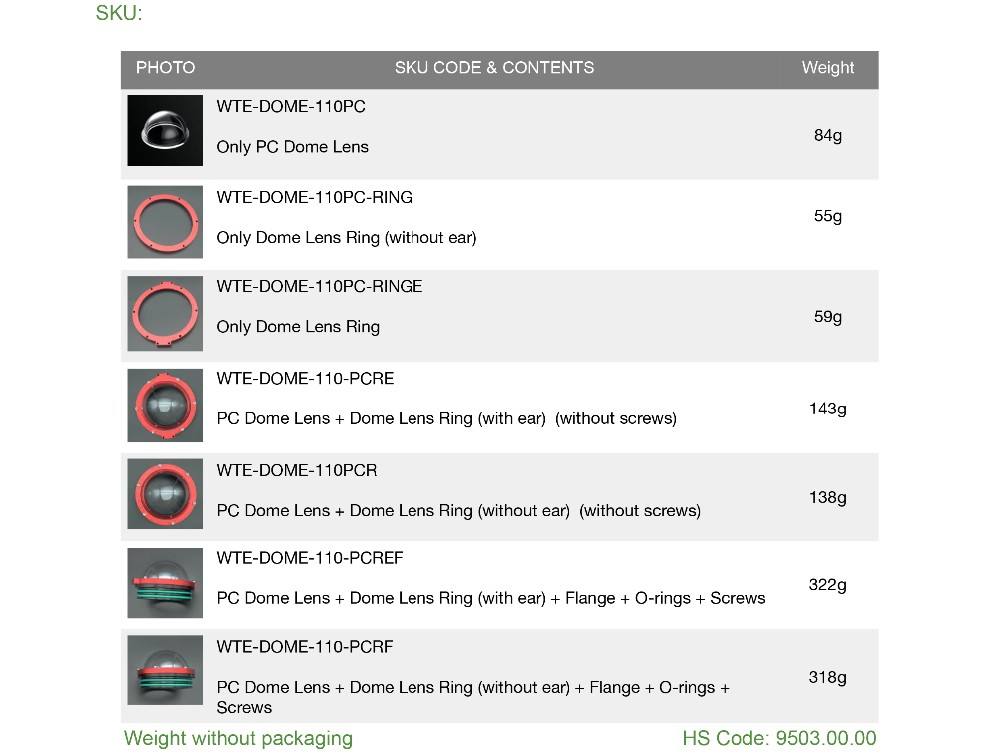

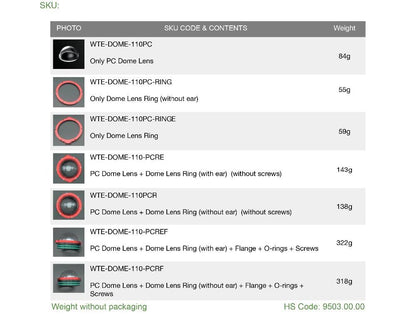

SKU:

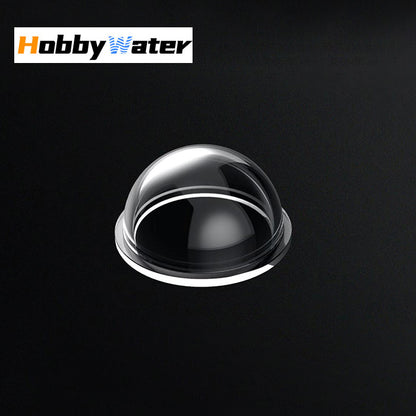

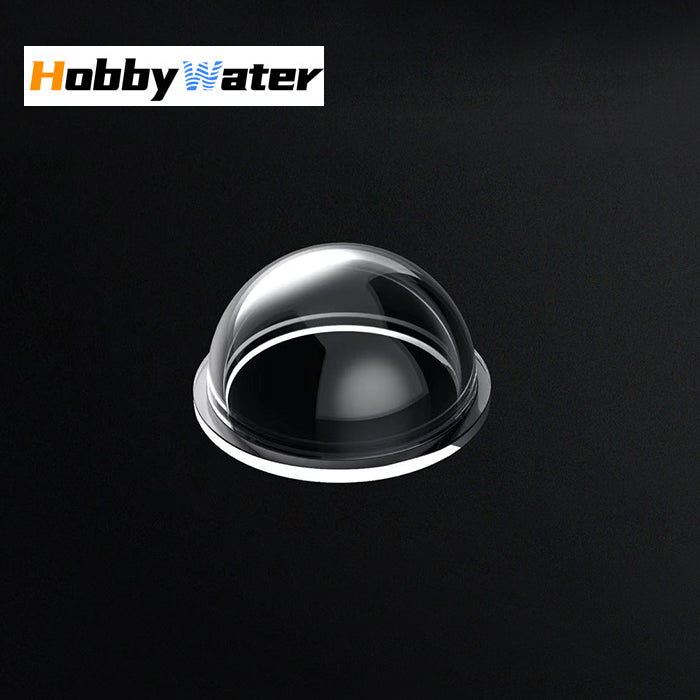

This clear optical PC dome lens is for use with underwater camera and underwater robot.

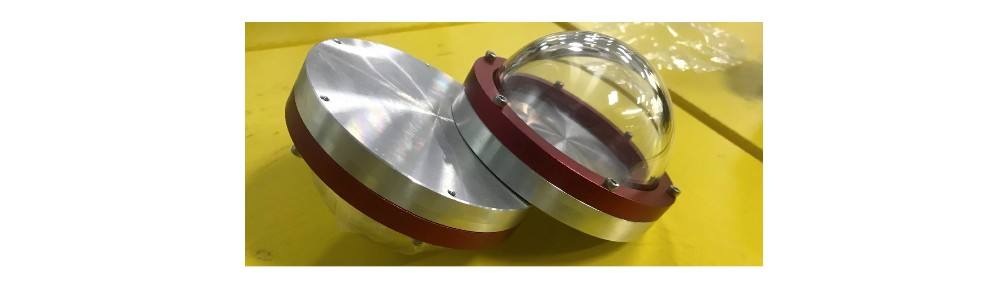

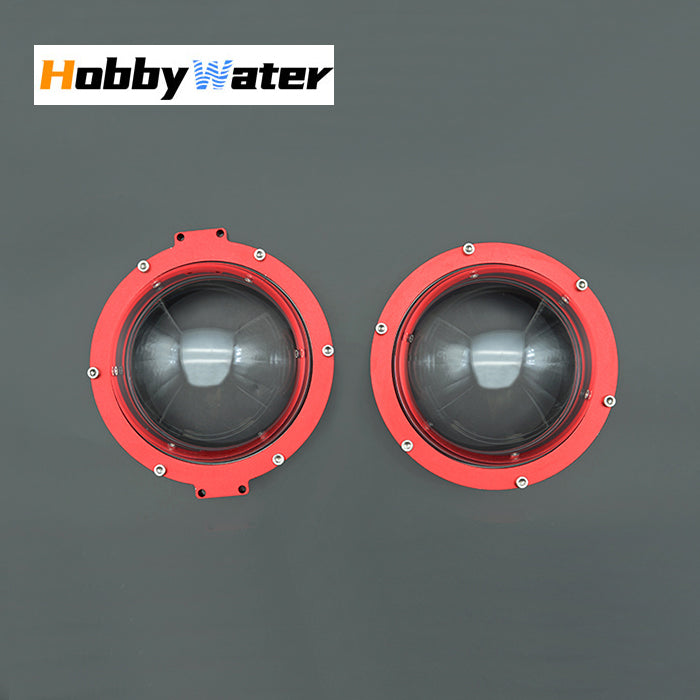

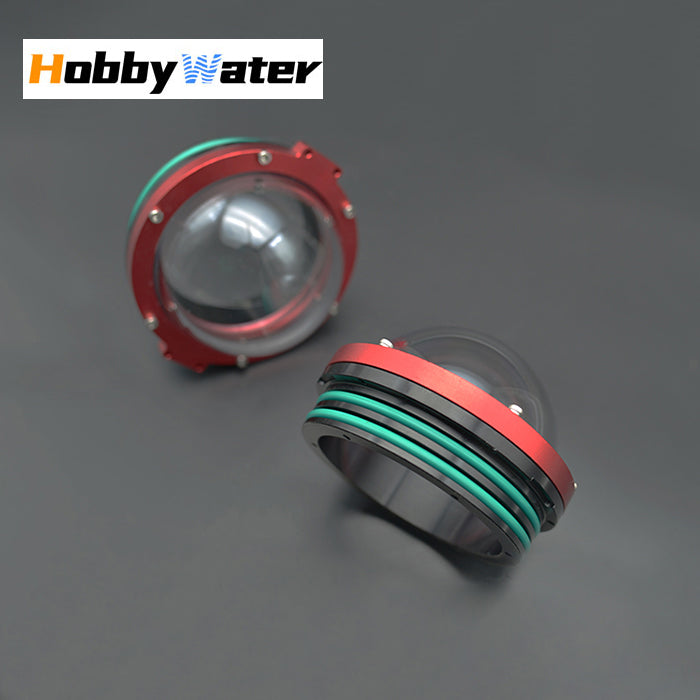

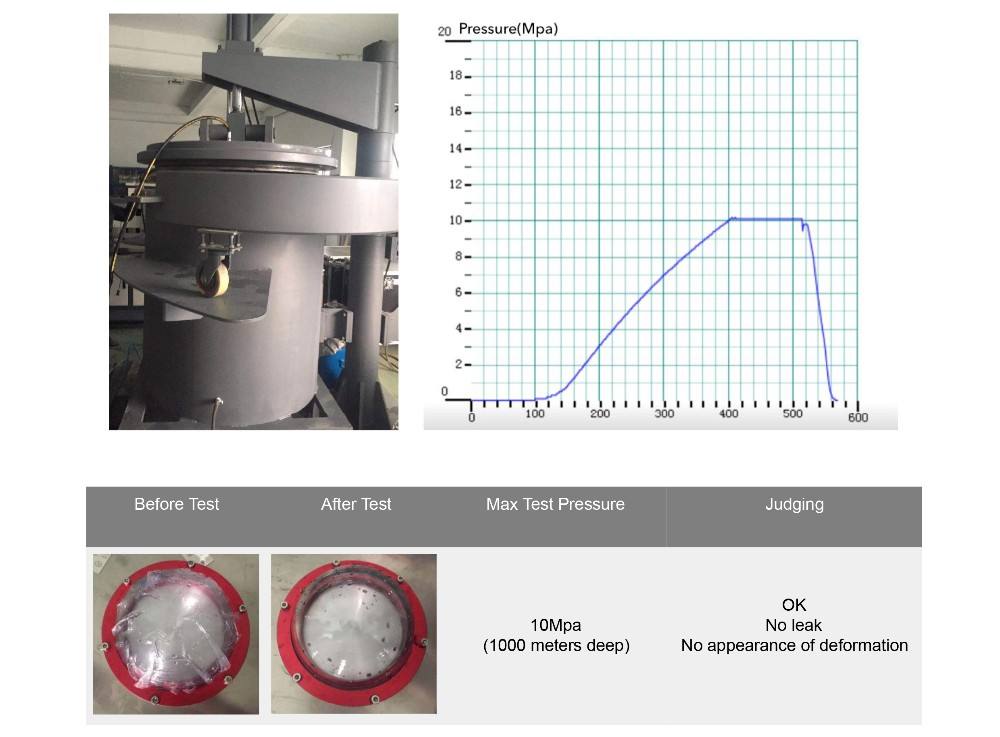

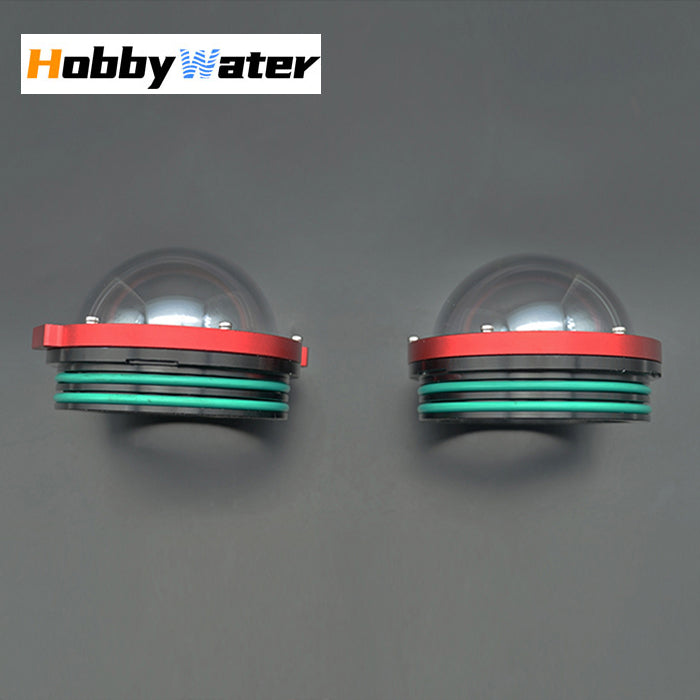

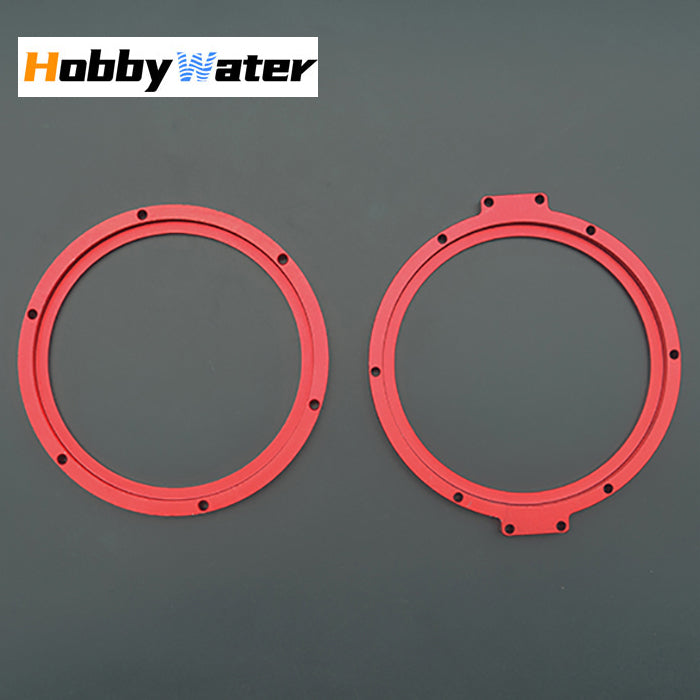

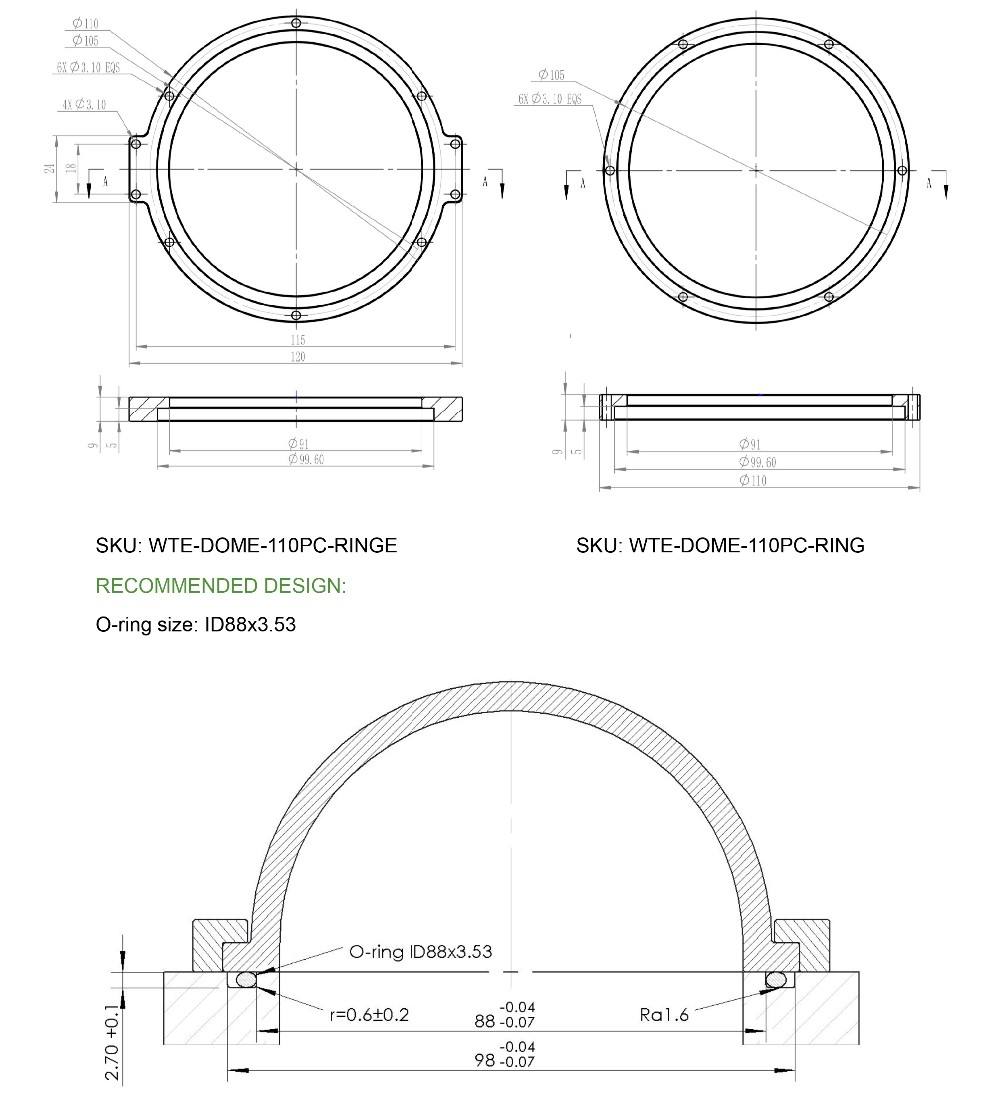

The dome shape reduces drag on your vehicle and give space for camera or camera pantilt. It has a wider field of view than that of a flat dome. This dome as been extensively pressure tested and is rated to 1000 meters(10 Mpa) water depth. This dome lens has some design reference with retaining ring and providing a robust and simple seal and installation.

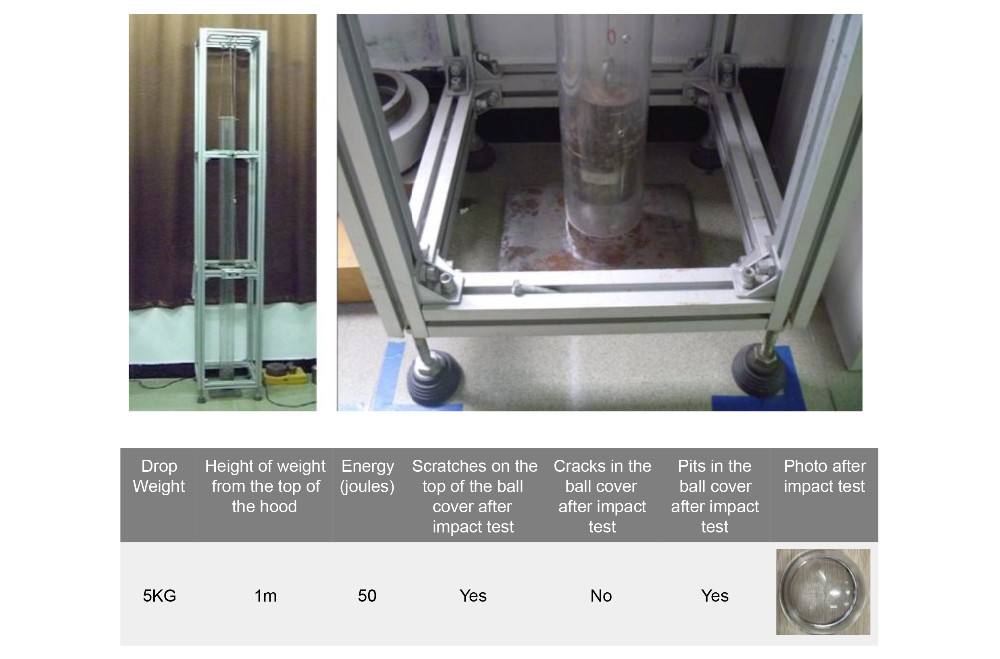

EXPLOSION PROOF TEST REPORT:

Test Process:
5kg cylindrical heavy hammer with a diameter of 85mm and a height of 124mm was placed at an altitude of 1m above the top of the 3.5-inch riot ball cover to conduct the impact experiment of zero-initial velocity free-falling body movement;
