ZTW MOSFET Technology IP67 Dual Operation 70A-300A HV Programmable ESC
$69.99 USD
Customization Service
We are the OEM ODM manufacturer. For bulk orders and custom solutions, please contact us at official@hobbywater.com
When will I get my order?
We prioritize fast order processing. For in-stock items, orders placed before 4:00 PM (Beijing Time) will be shipped the same day. Standard orders typically ship within one week, while customized orders require approximately 15-30 business days for production and delivery. Delivery times may vary under special circumstances.
Shipping Methods
We ship to most countries worldwide. However, please ensure compliance with your local import regulations.
- For the USA: We offer tax-inclusive shipping options. Expedited orders are shipped via DHL, UPS, or FedEx. Note: DHL does not allow undervaluation.
- For other countries: Tax-inclusive shipping is available upon request. Otherwise, orders will be shipped via 4PX by default.
For specific shipping requirements, please contact us in advance.
Key Features of Waterproof ESC
Advanced MOSFET Technology: Features low heat generation, high current endurance, and excellent reliability.
High-Performance Microprocessor: Equipped with a 32-bit microprocessor operating at 170MHz for enhanced performance and speed.

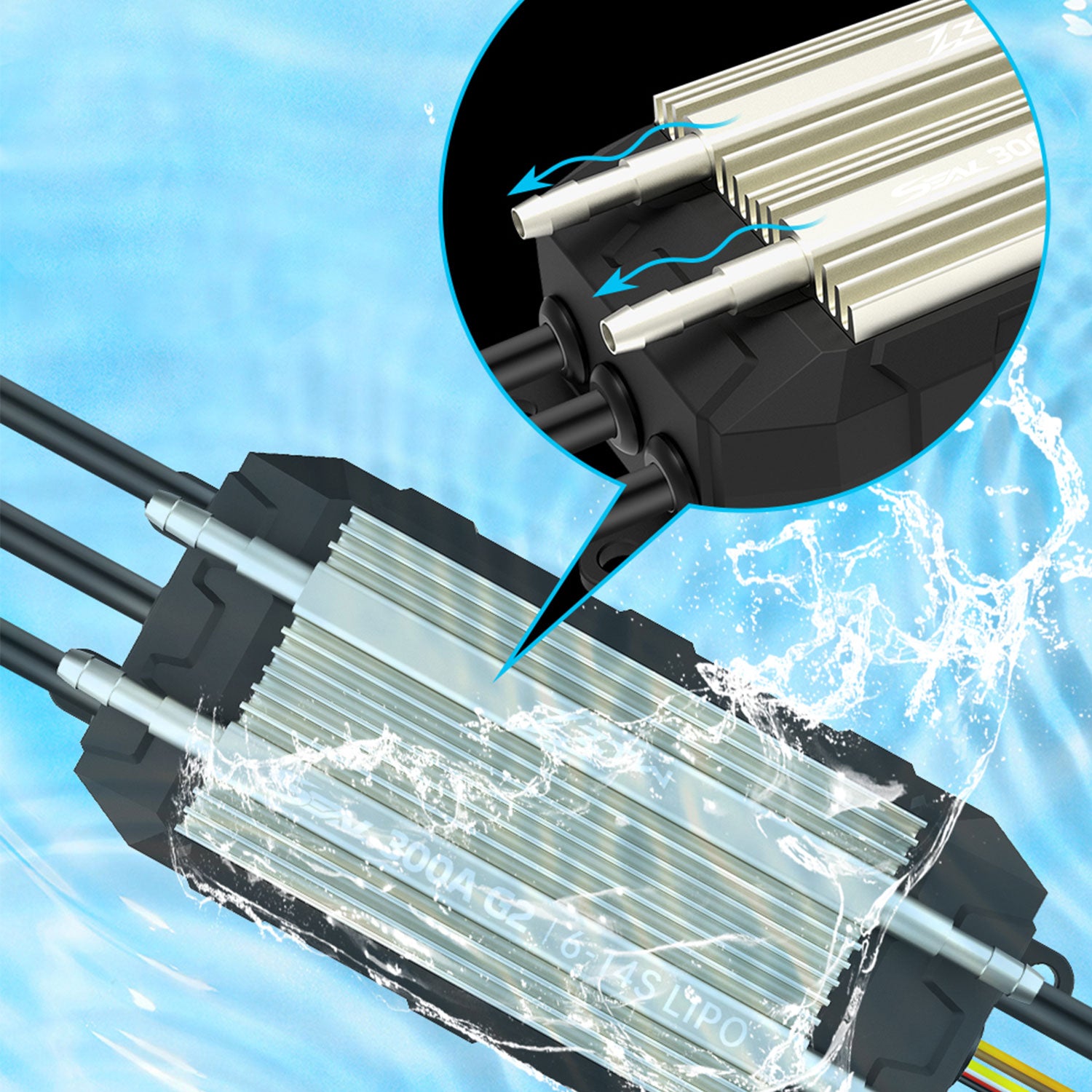

Waterproof Design: Rated IP67, suitable for humid environments, and includes a metal water cooling heat sink for efficient heat dissipation.
Smooth and Precise Control: Ultra-smooth startup and accurate throttle linearity, ideal for various RC boat models, electric surfboards, and underwater applications.
Dual Operation Modes: Offers "Forward Only" and "Forward and Reverse" modes.
Energy Efficiency: Features an idle function for higher driving efficiency and energy savings.
Compatibility: Supports high-speed motors and is compatible with most motors on the market.
Comprehensive Protections: Includes start-up, overheating, low voltage cut-off, signal loss, phase loss, overcurrent, abnormal power-on voltage, and overload protections.
Easy Programming: Supports programming via cell phone App or LCD program card, with additional ZTW App adapter or LCD program box G2 required for use.
Data Communication: Compatible with Futaba remote control (S.BUS2 protocol) for specific models (130A HV, 160A HV, 300A HV 6-14S ESCs).
Real-Time Data Return: Supports CAN protocol and provides real-time data on current, voltage, temperature, speed, throttle, and ESC status.
ZTW High Voltage Brushless ESC, 6-14S, XT60 Plug, Bi-Directional Control, IP67 Waterproof for Model Boats, RC Boats, Surfboards, Hydrofoils

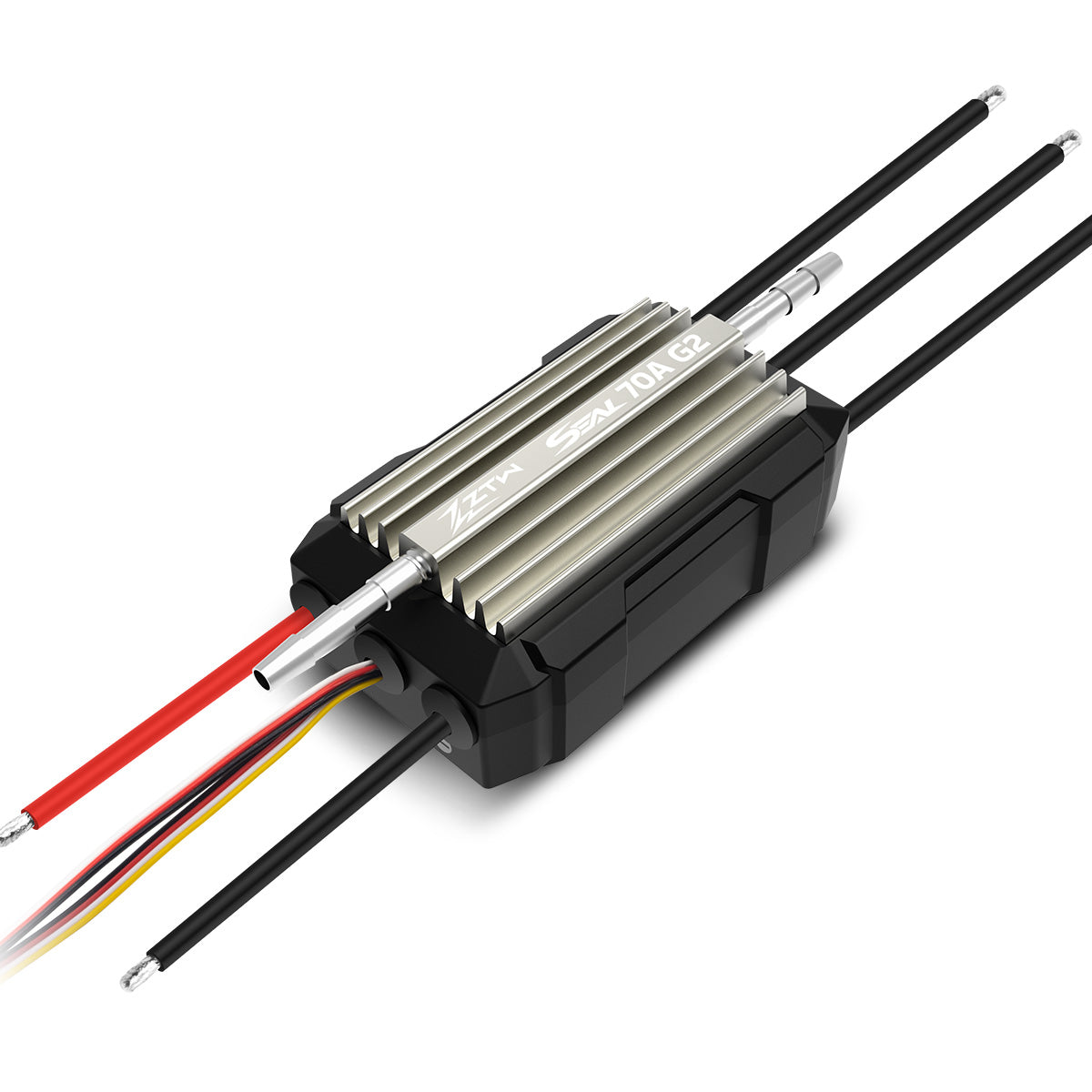

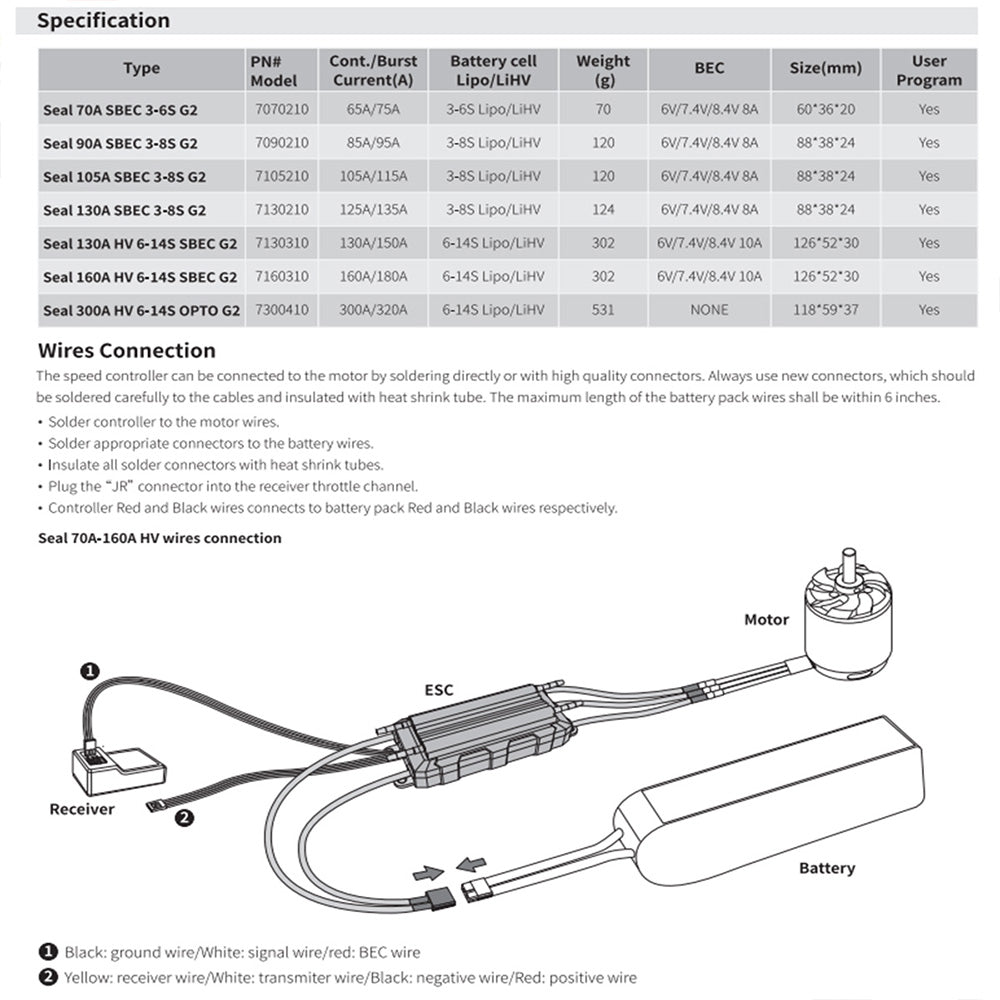

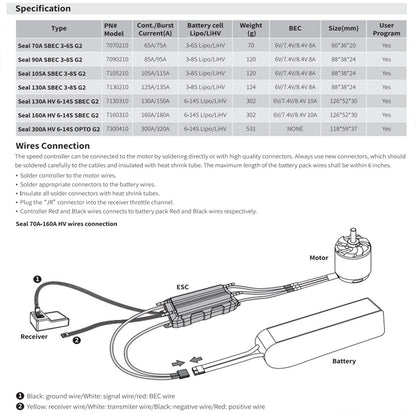

Seal 70A SBEC G2 (7070210)
Power Cable Specifications: 14# 80mm (Red*1/Black*1)
Motor Cable Specifications: 14# 65mm (Black*3)
Signal Cable Specifications: 60C 330mm Yellow/White/Red/Black 4 Ordinary JR Head
Connector: XT60
Ground Wire (optional): 3.5
Continuous Output Current: 70A
Peak Output Current: 80A
Battery Cells: 2-6S Lipo
BEC Output: 6V/7.4V/8.4V adjustable / 8A
Programming Functionality: Remote Control/LCD Programming Card G2/Android & Apple APP
Software Upgradeable: Yes
Waterproof: Yes
ESC Dimensions: 60*36*20mm
ESC Weight: 70g
Seal 90A SBEC G2 (7090210)
Power Cable Specifications: 12# 80mm (Red*1/Black*1)
Motor Cable Specifications: 12# 65mm (Black*3)
Signal Cable Specifications: 60C 330mm Yellow/White/Red/Black 4 Ordinary JR Head
Connector: XT60
Ground Wire (optional): 4.0
Continuous Output Current: 85A
Peak Output Current: 95A
Battery Cells: 3-8S Lipo
BEC Output: 6V/7.4V/8.4V adjustable / 8A
Programming Functionality: Remote Control/LCD Programming Card G2/Android & Apple APP
Software Upgradeable: Yes
Waterproof: Yes
ESC Dimensions: 88*38*24mm
ESC Weight: 120g

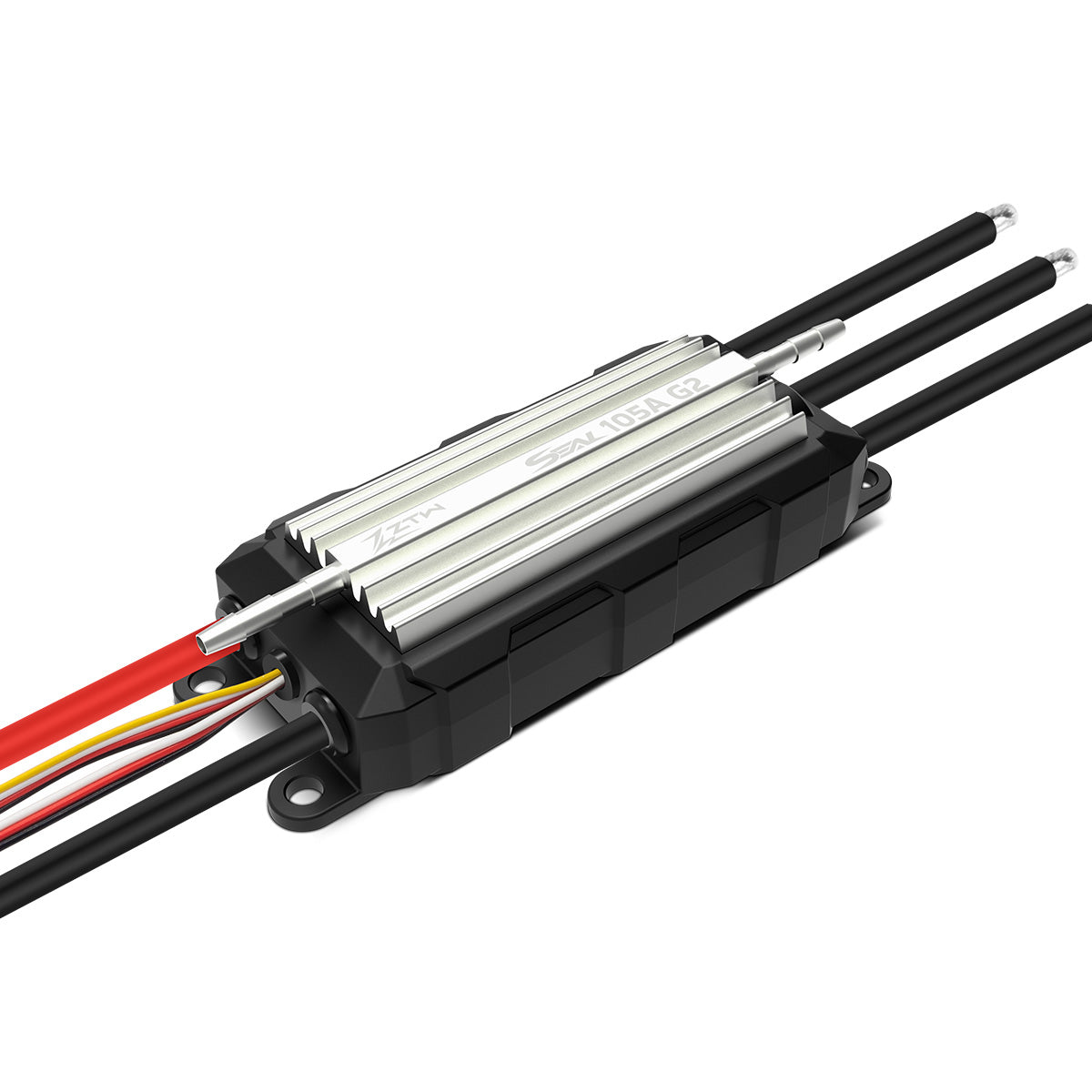

Seal 105A SBEC G2 (7105210)
Power Cable Specifications: 12# 80mm (Red*1/Black*1)
Motor Cable Specifications: 12# 65mm (Black*3)
Signal Cable Specifications: 60C 330mm Yellow/White/Red/Black 4 Ordinary JR Head
Connector: XT60
Ground Wire (optional): 4.0
Continuous Output Current: 105A
Peak Output Current: 115A
Battery Cells: 3-8S Lipo
BEC Output: 6V/7.4V/8.4V adjustable / 8A
Programming Functionality: Remote Control/LCD Programming Card G2/Android & Apple APP
Software Upgradeable: Yes
Waterproof: Yes
ESC Dimensions: 88*38*24mm
ESC Weight: 120g

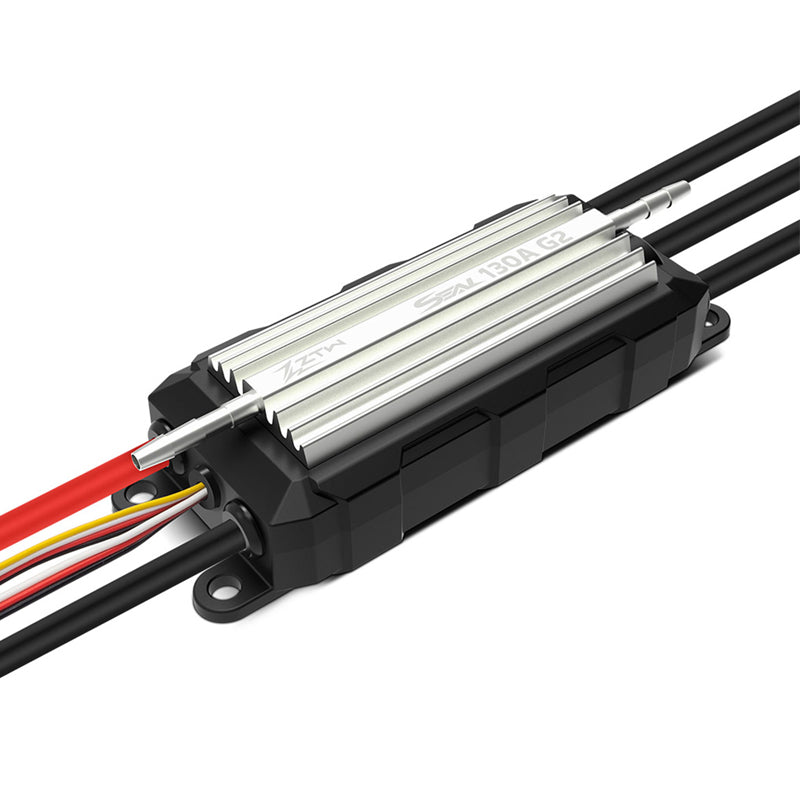

Seal 130A SBEC G2 (7130210)
Power Cable Specifications: 10# 160mm (Red*1/Black*1)
Motor Cable Specifications: 10# 65mm (Black*3)
Signal Cable Specifications: 60C 330mm Yellow/White/Red/Black 4P Ordinary JR Head
Connector: XT60
Ground Wire (optional): 4.0
Continuous Output Current: 125A
Peak Output Current: 135A
Battery Cells: 3-8S Lipo
BEC Output: 6V/7.4V/8.4V adjustable / 8A
Programming Functionality: Remote Control/LCD Programming Card G2/Android & Apple APP
Software Upgradeable: Yes
Waterproof: Yes
ESC Dimensions: 88*38*24mm
ESC Weight: 124g

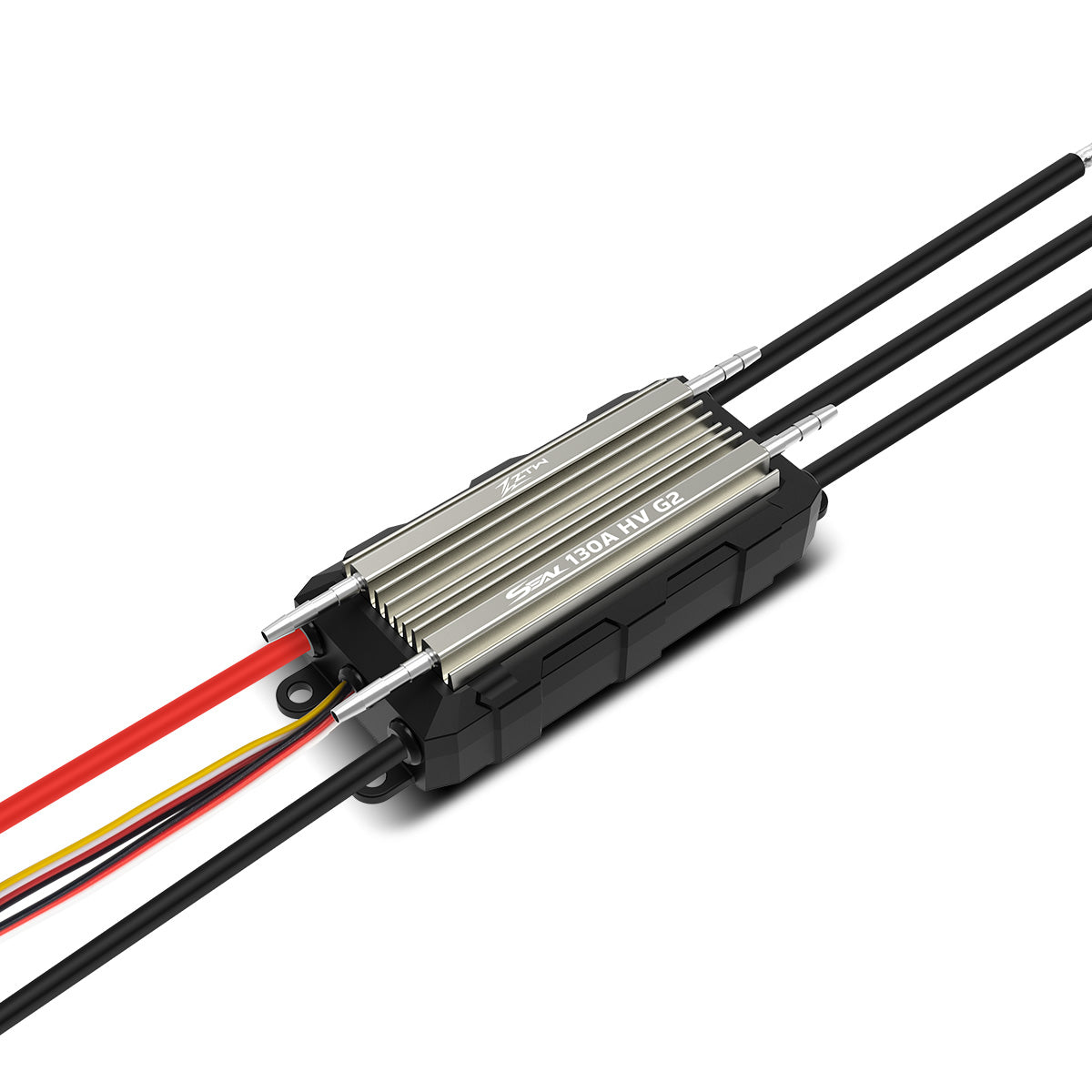

Seal 130A HV SBEC G2 (7130410)
Power Cable Specifications: 10# 160mm (Black*2)
Motor Cable Specifications: 10# 160mm (Black*3)
Signal Cable Specifications: 60C 330mm Yellow/White/Red/Black 4P
Connector: XT60
Ground Wire (optional): 5.5
Continuous Output Current: 130A
Peak Output Current: 150A
Battery Cells: 6-14S Lipo
BEC Output: 6V/7.4V/8.4V adjustable / 10A
Programming Functionality: Remote Control/LCD Programming Card G2/Android & Apple APP
Software Upgradeable: Yes
Waterproof: Yes
ESC Dimensions: 126*52*30mm
ESC Weight: 302g
Seal 160A HV SBEC G2 (7160410)
Power Cable Specifications: 10# 160mm (Black*2)
Motor Cable Specifications: 10# 160mm (Black*3)
Signal Cable Specifications: 60C 330mm Yellow/White/Red/Black 4P
Connector: XT60
Ground Wire (optional): 5.5
Continuous Output Current: 160A
Peak Output Current: 180A
Battery Cells: 6-14S Lipo
BEC Output: 6V/7.4V/8.4V adjustable / 10A
Programming Functionality: Remote Control/LCD Programming Card G2/Android & Apple APP
Software Upgradeable: Yes
Waterproof: Yes
ESC Dimensions: 126*52*30mm
ESC Weight: 302g

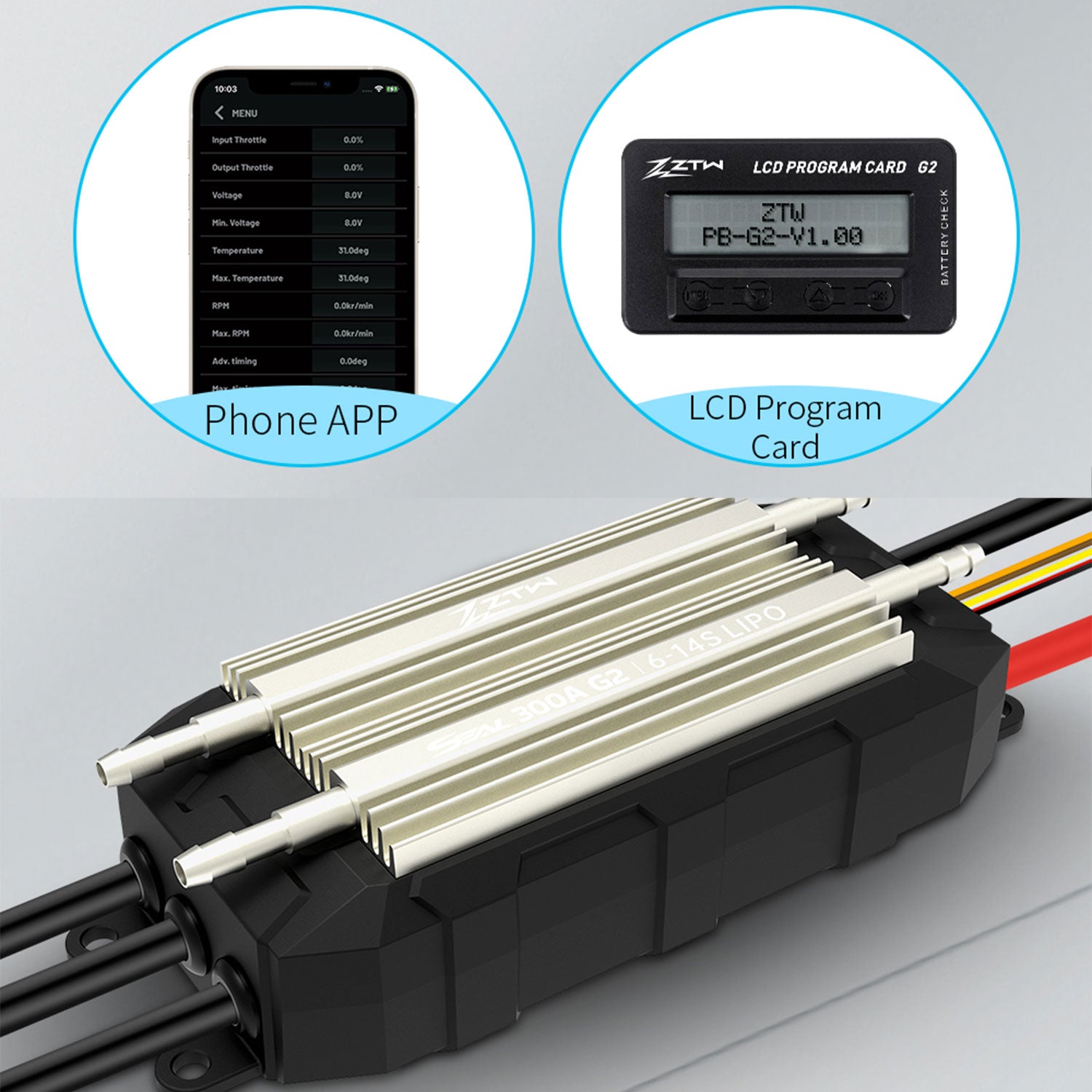

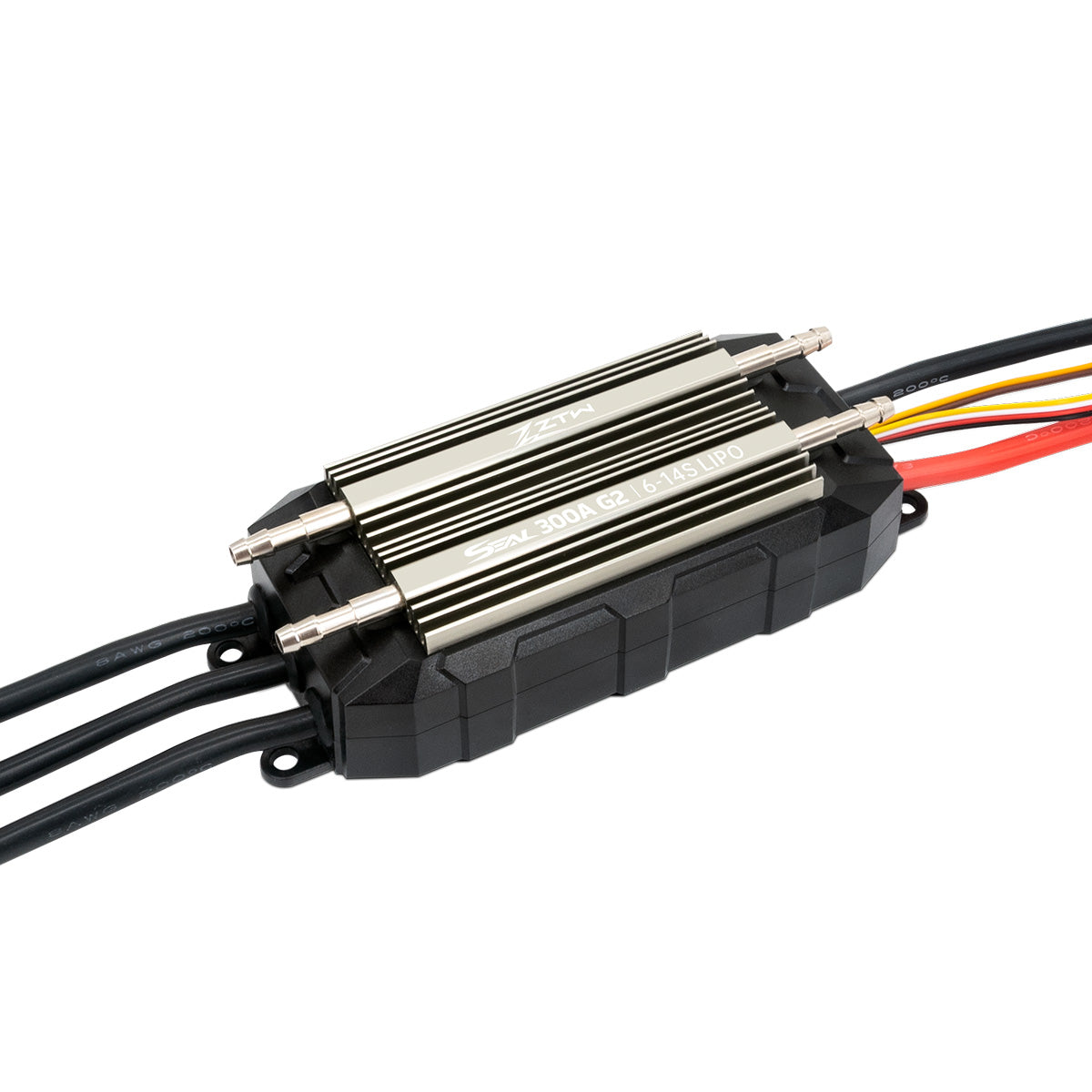

Seal 300A HV OPTO G2 (7300410)
Power Cable Specifications: 8# 160mm (Red*1/Black*1)
Motor Cable Specifications: 8# 160mm (Black*3)
Signal Cable Specifications: 60C 330mm Black/Red/White/Yellow 4P
Connector: /
Ground Wire: /
Continuous Output Current: 300A
Peak Output Current: 320A
Battery Cells: 6-14S Lipo
BEC Output: None
Programming Functionality: Remote Control/LCD Programming Card G2/Android & Apple APP
Software Upgradeable: Yes
Waterproof: Yes
ESC Dimensions: 118*59*37mm
ESC Weight: 531g
Simple ESC Matching Guide
Voltage (V):
ESC voltage = Battery voltage (e.g., 3S LiPo = 12V, 6S LiPo = 24V).
Current (A):
ESC current ≥ Motor max current + 20-30% safety margin.
Quick Examples:12V, 20A motor → 30A ESC (or higher).
Rule: ESC can handle higher amps than needed, but never lower. Always check motor specs!
