DW66168 6650W High-Torque Motor - 130KV IP68 for EV, Marine & Robotics

DW66168 High-Torque Brushless Motor

Power & Precision for Demanding Industrial Applications

Key Features

• ⚡ High Power Density – 6650W (8000W max) continuous power

• 🔧 Extreme Torque – 10.1 Nm (19.3 Nm max) for heavy-duty applications

• 🎯 Low KV Design – 130KV optimized for high-torque, low-speed operation

• 🌊 IP68 Waterproof – Fully submersible for marine and harsh environments

• 🏗️ Robust Construction – 2850g weight with F-class insulation

• 🔌 Ready to Install – Includes 90cm cable for easy integration

• 📐 Compact Dimensions – Φ66 × 168mm fits space-constrained designs

Technical Specifications

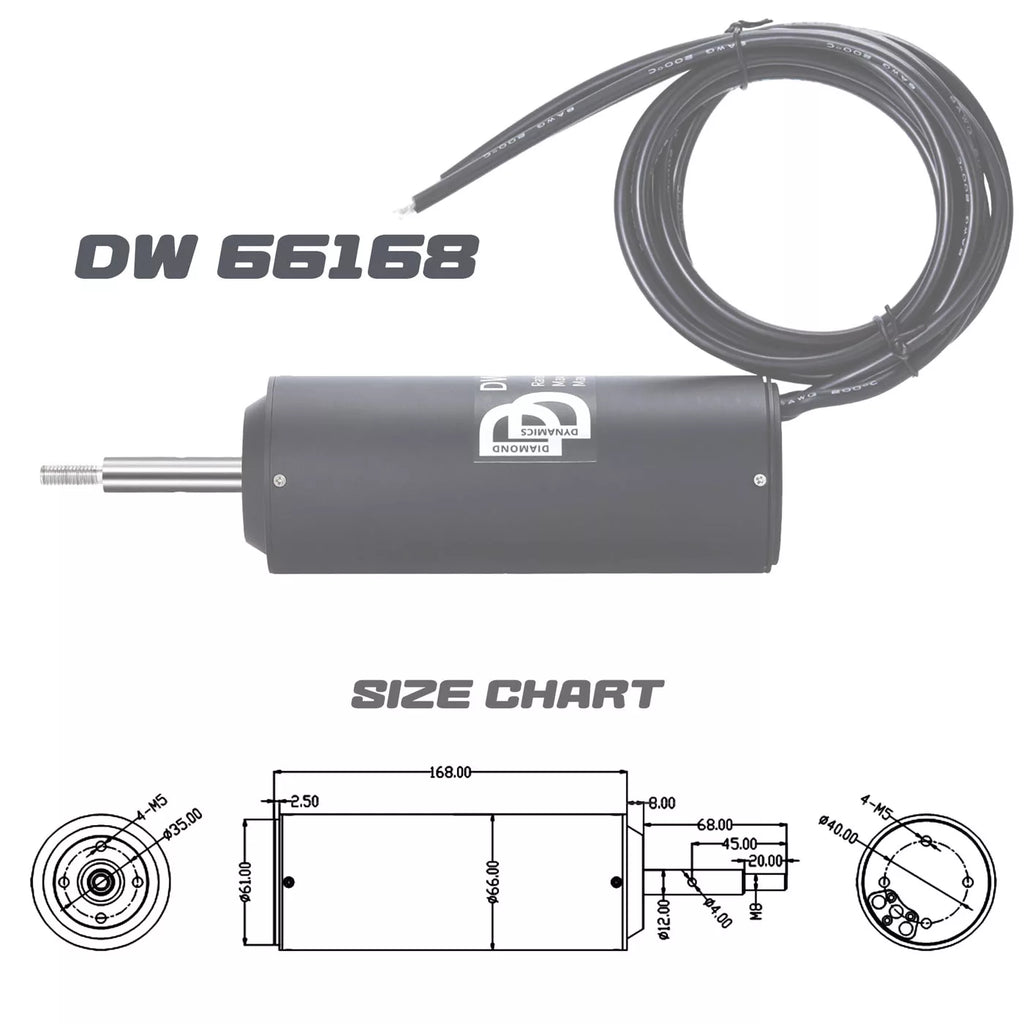

• Dimensions: Φ66 × 168mm

• KV Rating: 130KV

• Power: 6650W (8000W max)

• Speed: 6850 RPM

• Torque: 10.1 Nm (19.3 Nm max)

• Poles: 6

• Insulation: Class F

• Waterproof: IP68

• Weight: 2850g

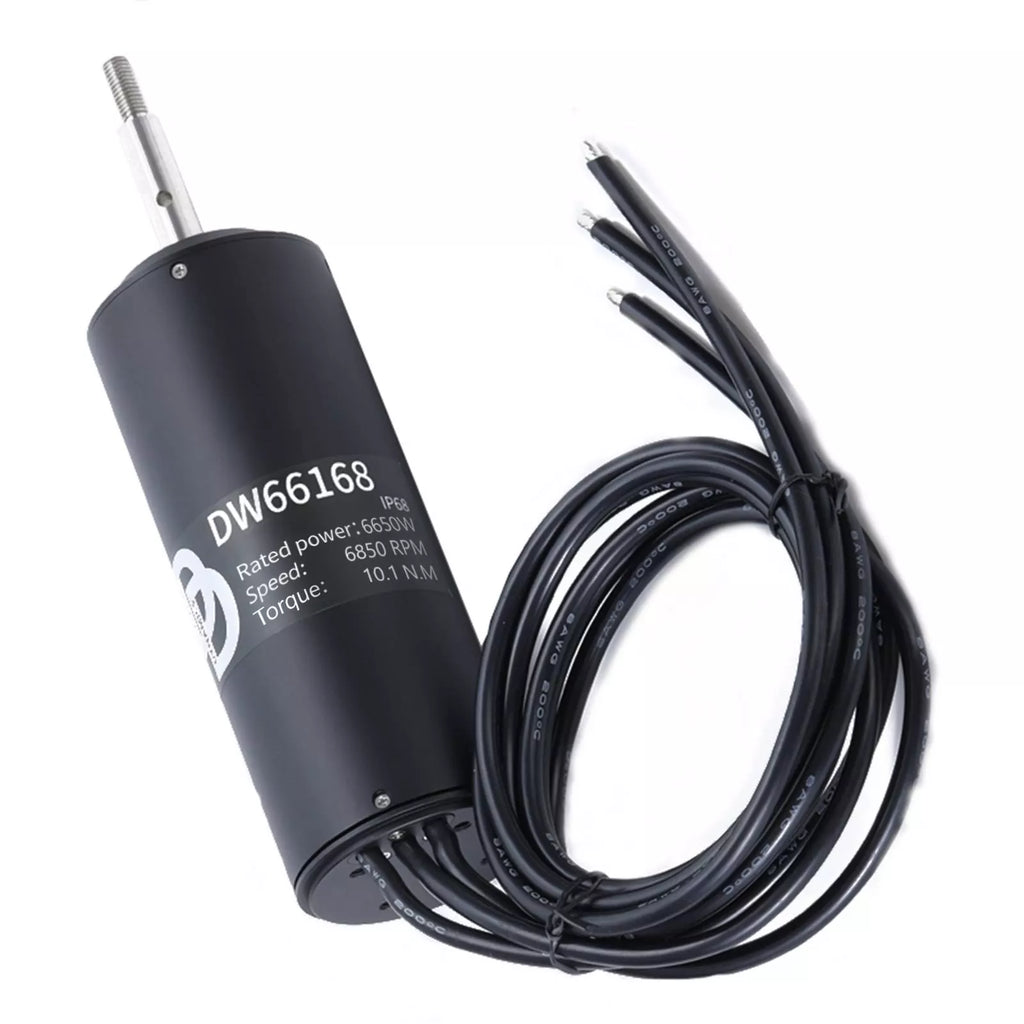

• Cable: 90cm

Application Scenarios

• Industrial Machinery – High-torque drives and automation systems

• Robotics – Robotic arms, AGVs, and mobile platforms

• Electric Vehicles – EV powertrains and auxiliary systems

• Aerospace – Drones, UAVs, and aerospace mechanisms

• Marine Propulsion – Boats, underwater thrusters, and marine vessels

• AUV/ROV – Autonomous and remotely operated vehicles

• Electric Surfboards – High-performance water sports propulsion

Customization Options

All specifications can be customized according to your project requirements, including:

• KV rating and winding options

• Shaft design and mounting configuration

• Cable length and connector types
