TD-Y02D Servo Steering Thruster 35° Turn 11.5kgf Thrust for SUP/Kayak
$389.00 USD
Customization Service
We are the OEM ODM manufacturer. For bulk orders and custom solutions, please contact us at official@hobbywater.com
When will I get my order?
We prioritize fast order processing. For in-stock items, orders placed before 4:00 PM (Beijing Time) will be shipped the same day. Standard orders typically ship within one week, while customized orders require approximately 15-30 business days for production and delivery. Delivery times may vary under special circumstances.
Shipping Methods
We ship to most countries worldwide. However, please ensure compliance with your local import regulations.
- For the USA: We offer tax-inclusive shipping options. Expedited orders are shipped via DHL, UPS, or FedEx. Note: DHL does not allow undervaluation.
- For other countries: Tax-inclusive shipping is available upon request. Otherwise, orders will be shipped via 4PX by default.
For specific shipping requirements, please contact us in advance.

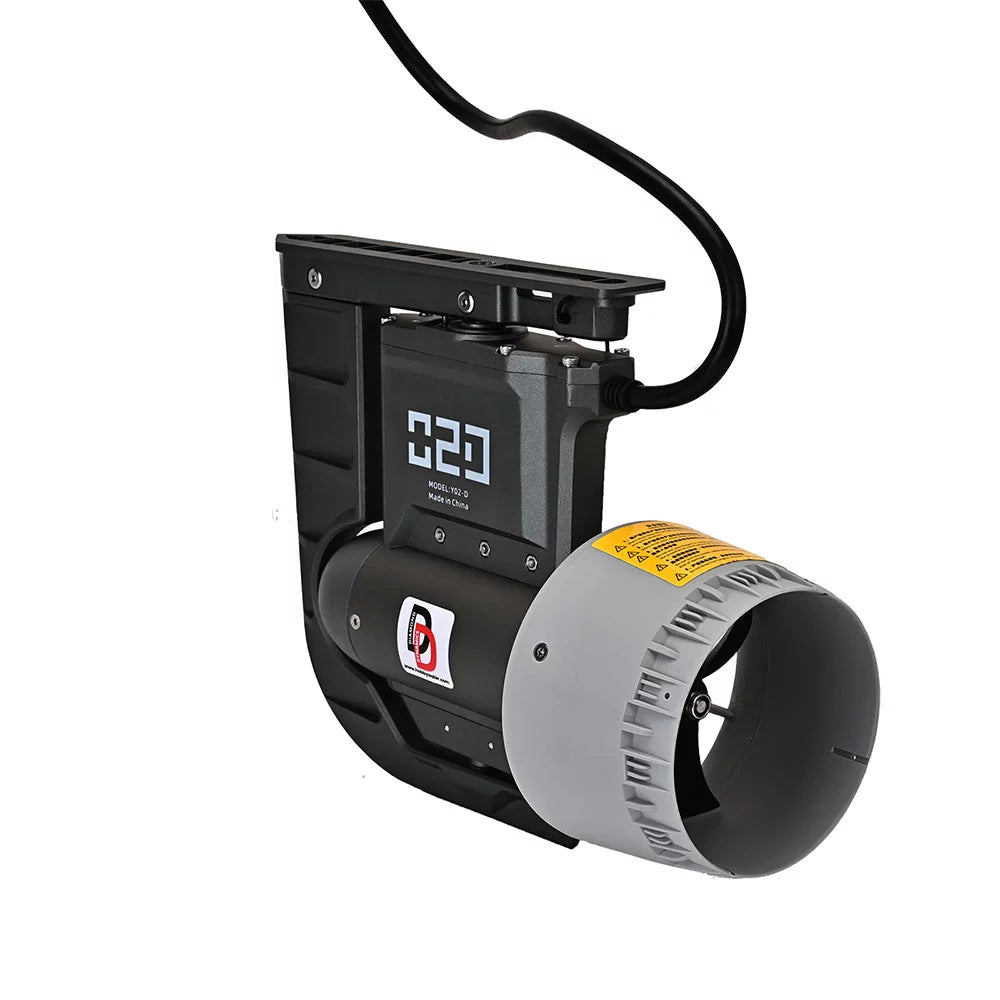

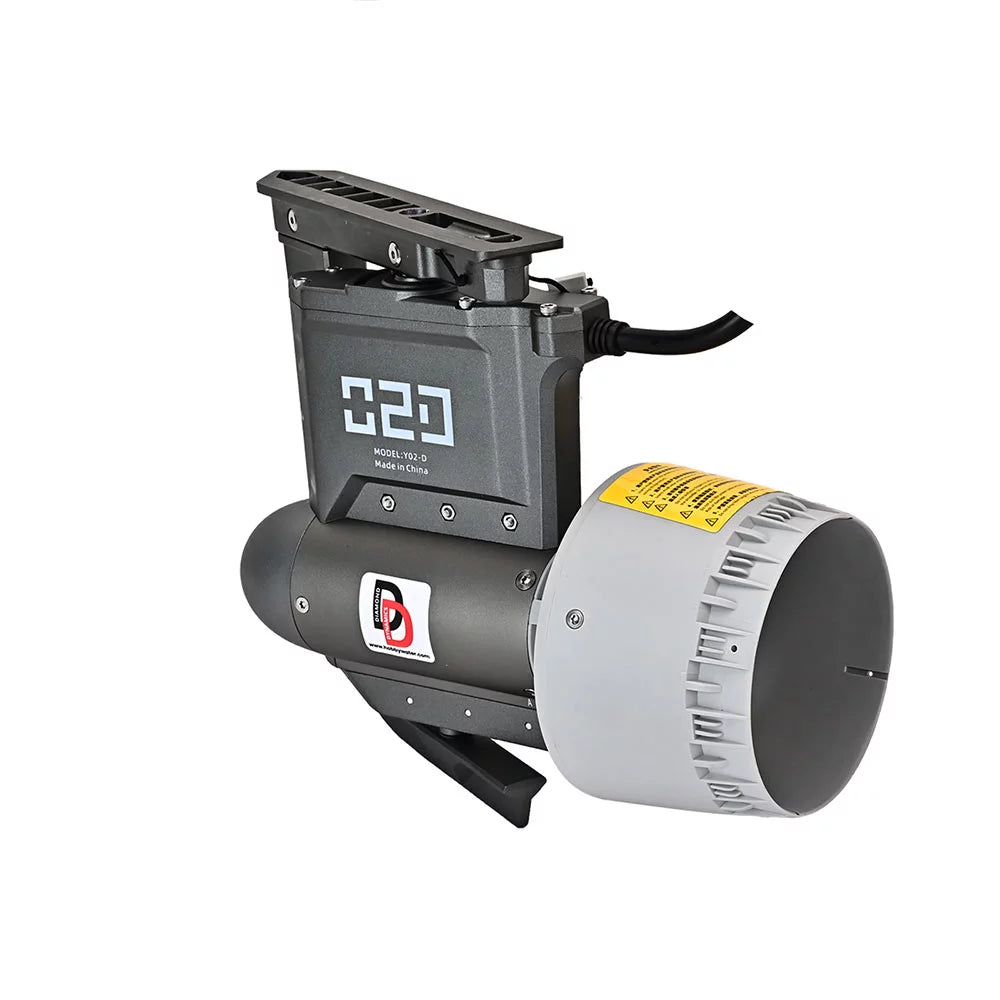

TD-Y02D servo steering
SUP · Kayak · Inflatable | 2kg (no battery)
±35°steering (70° sweep)
450Wrated power
11.5kgfmax thrust
9km/hwith 100kg load
272×210×114mmcompact
Servo steering · precision

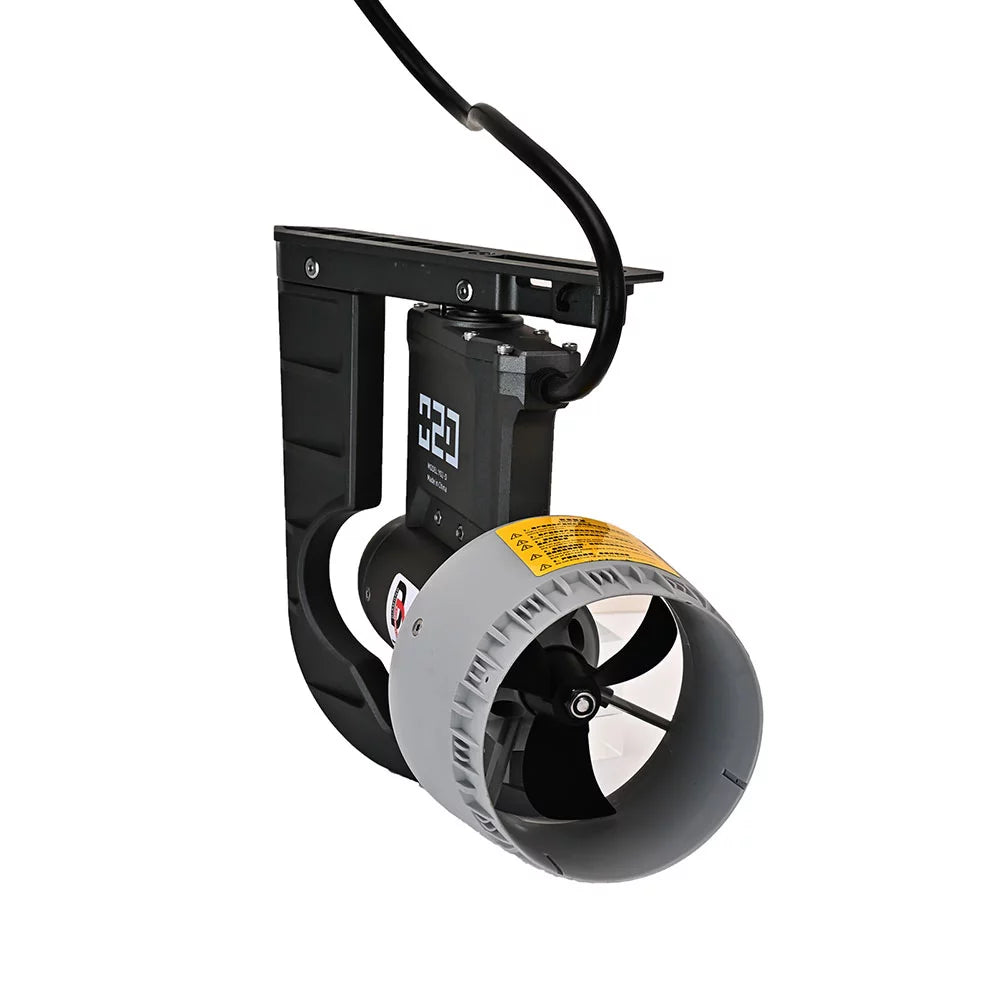

Built-in servo, ±35° precise deflection. No leaning or paddling – agile in narrow channels, docks, fishing zones. Joystick on remote for fingertip directional control, instant response.
11.5kgf thrust
3000r/min
9km/h top
dual emergency · forward modes
Battery options · runtime
| Model | Type | Capacity | Voltage | Weight | Runtime (9km/h) | Range |
|---|---|---|---|---|---|---|
| B1 | Li-ion | 36Ah | 22.2V | 4.95kg | 100 min | 14.9 km |
| B2 | LiFePO₄ | 15Ah | 22.4V | 2.73kg | 45 min | 6.75 km |
| B3 | LiFePO₄ | 30Ah | 22.4V | 5.5kg | 90 min | 13.5 km |
| B75S | LiFePO₄ | 75Ah | 25.6V | 13.8kg | 270 min | 40.5 km |
Test: 20°C static freshwater, 100kg SUP load. Actual may vary. Custom higher capacity available.
Dual‑mode remote
Mode 1 servo + digital trim
Mode 2 twin‑motor differential
cruise lock floats
Receiver · hub
Output/power ports · emergency forward (slow/med/fast)
blue: normal purple: binding
Charger specs
B1/B2/B3: 25.2V / 120W·75W
B75S: 28.8V / 230W
charging full
Tool‑free install
Slide into SUP slot → pin lock → battery strap → connect → power on
fresh/saltwater ready
Receiver ports
- Output (control signal)
- Power (battery input)
- Emergency switch (slow→med→fast)
- blue: normal link
- purple: binding mode
Remote features
- Cruise control (speed lock)
- Key lock (anti‑accidental)
- 4‑bar signal strength
- Battery level (1‑4 bars)
- Magnetic USB charge · floats
Emergency: battery & receiver independent switches
Binding: press Mode1+Mode2 6s
Rinse in fresh water after saltwater use
Battery storage: 23.5V‑24V (hibernation)
Under 12: adult supervision · wear PFD

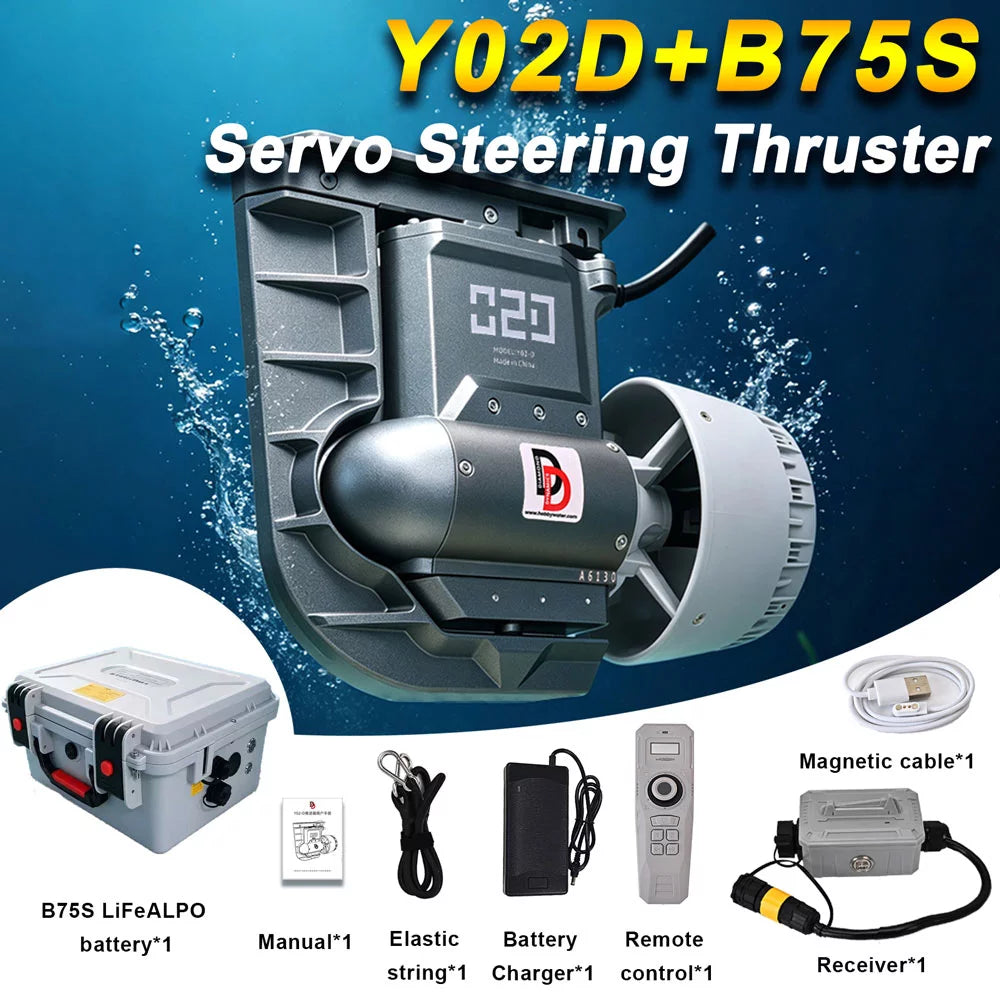

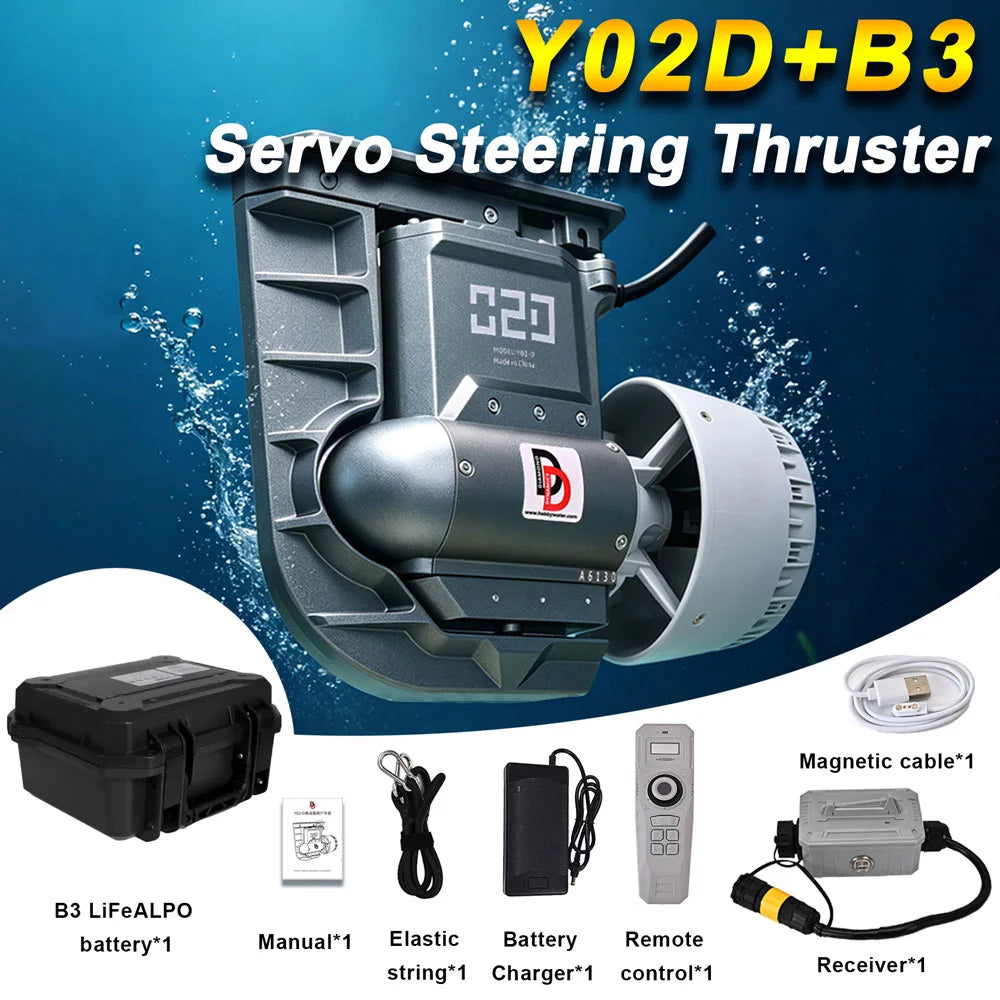

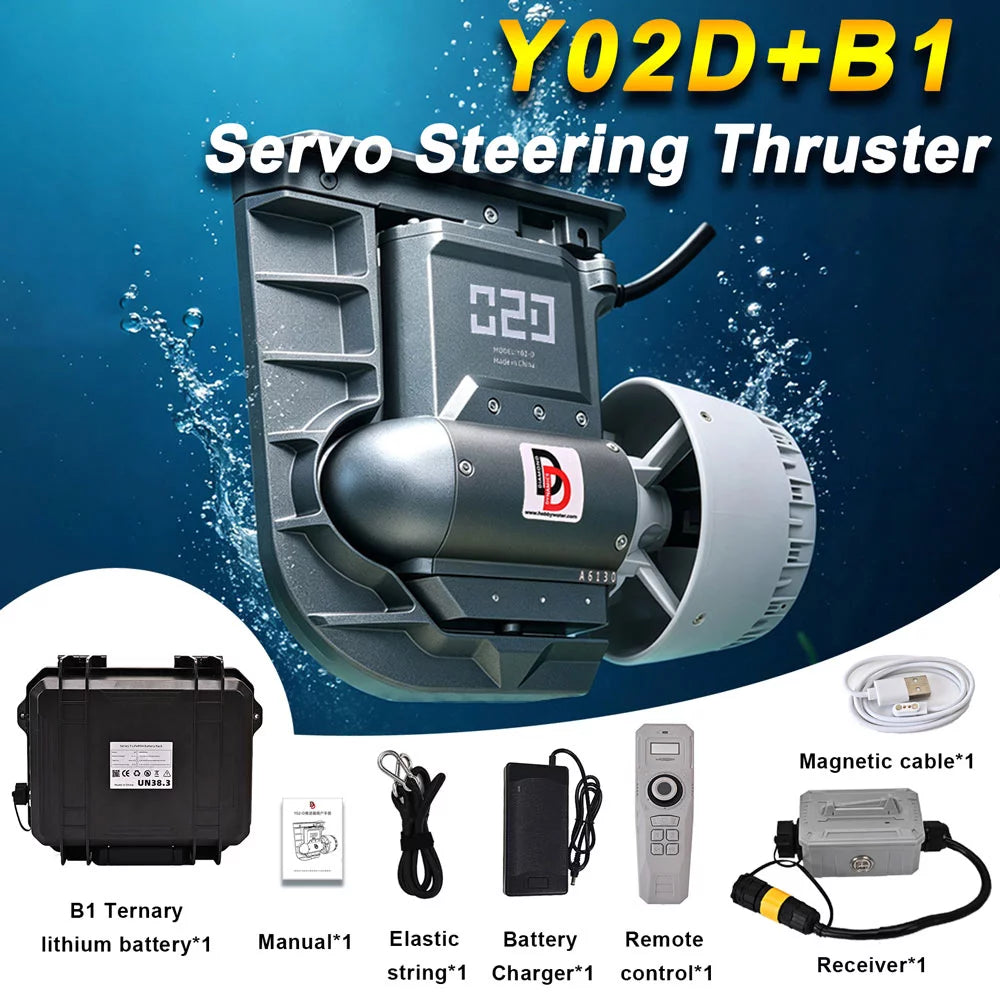

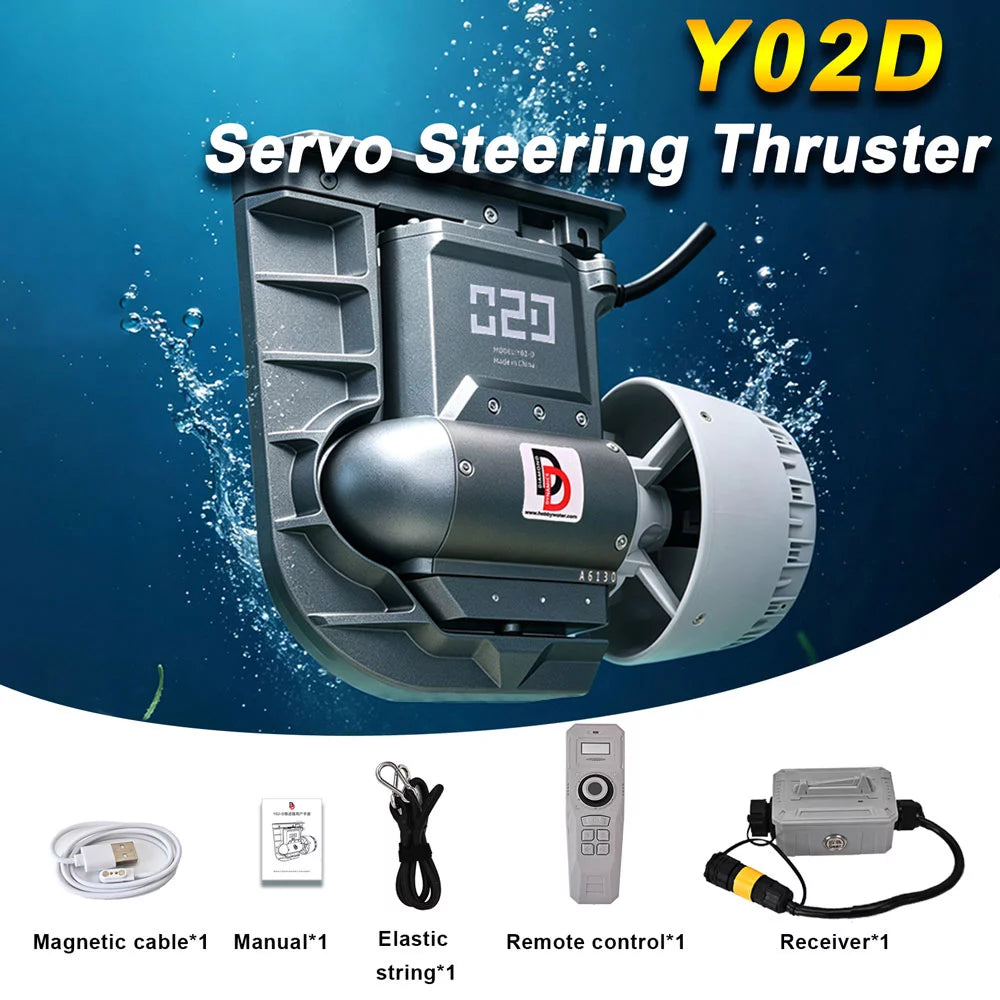

Included: thruster+remote+charger+strap+battery
Factory pre‑paired · ready to use Check remote/battery every 2‑3 months Use official battery only Clear propeller if entangled, power off immediately
Read manual before use · water depth >0.5m · always carry a paddle
Simple ESC Matching Guide
Voltage (V):
ESC voltage = Battery voltage (e.g., 3S LiPo = 12V, 6S LiPo = 24V).
Current (A):
ESC current ≥ Motor max current + 20-30% safety margin.
Quick Examples:12V, 20A motor → 30A ESC (or higher).
Rule: ESC can handle higher amps than needed, but never lower. Always check motor specs!
