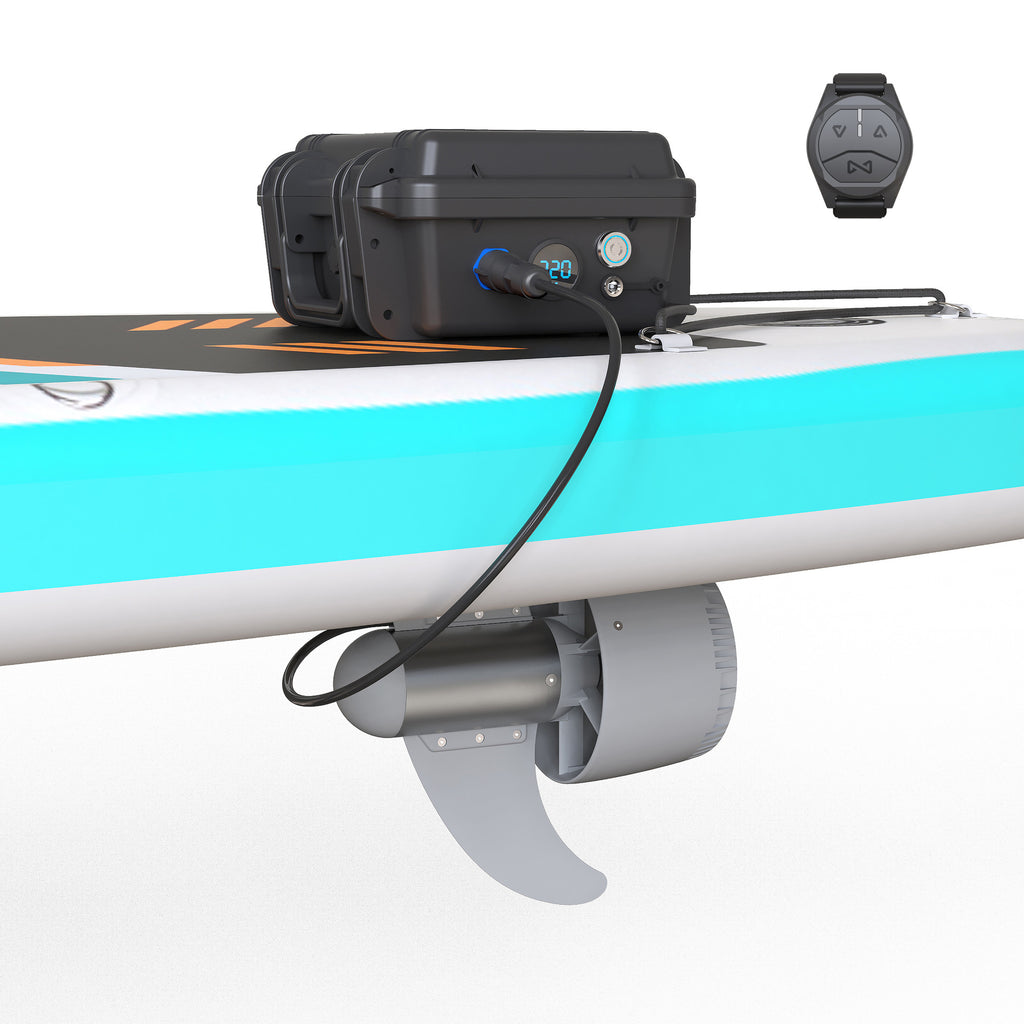

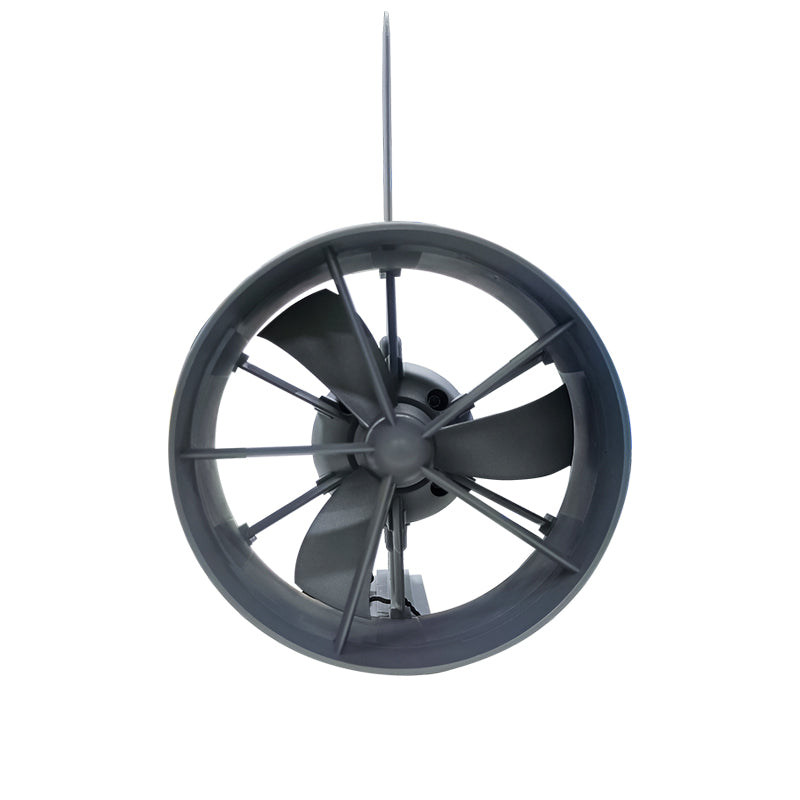

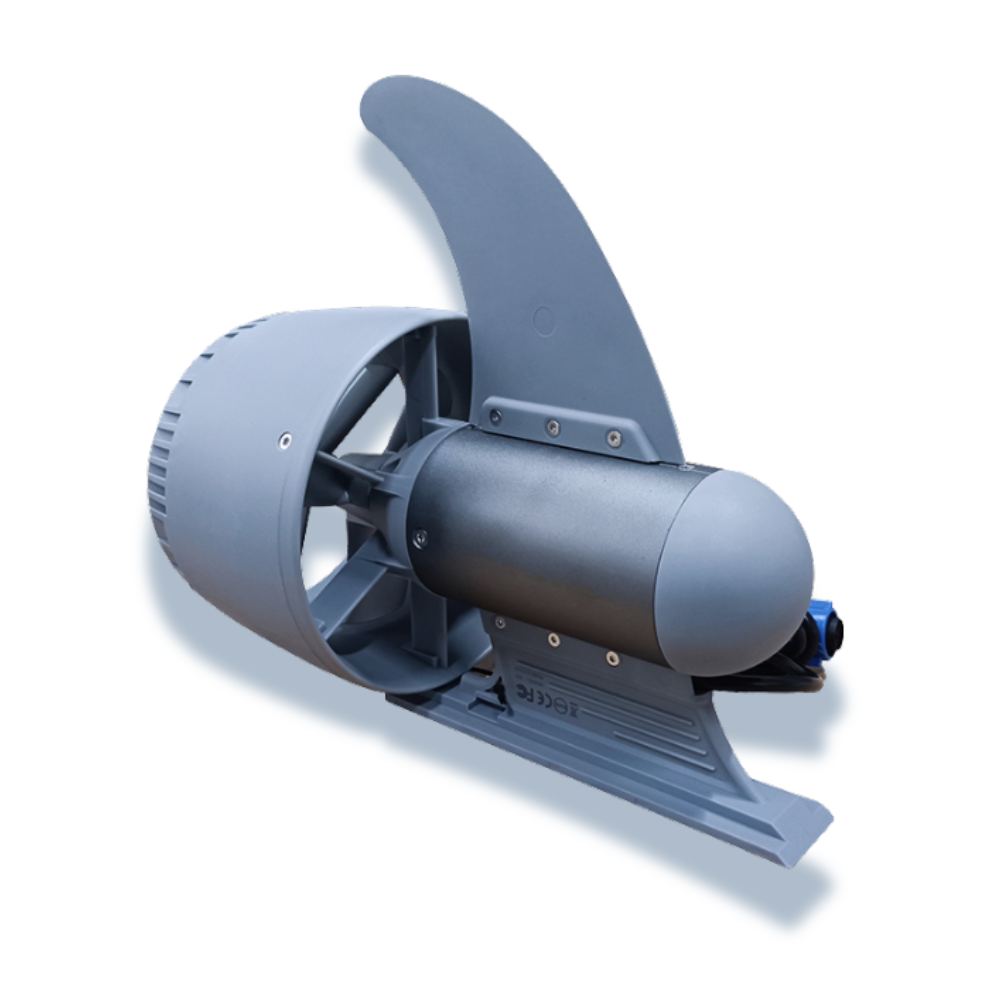

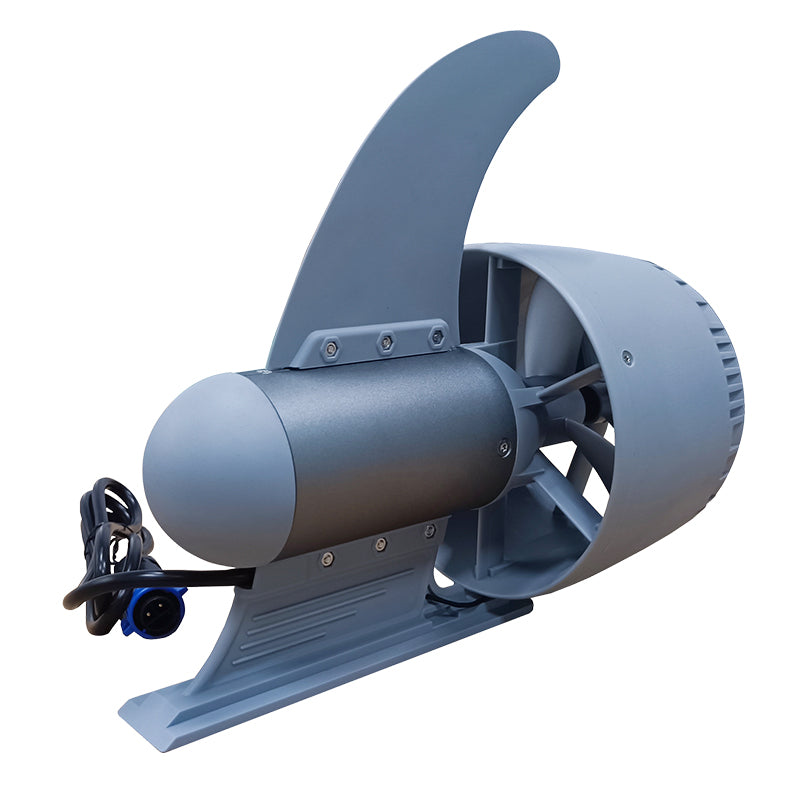

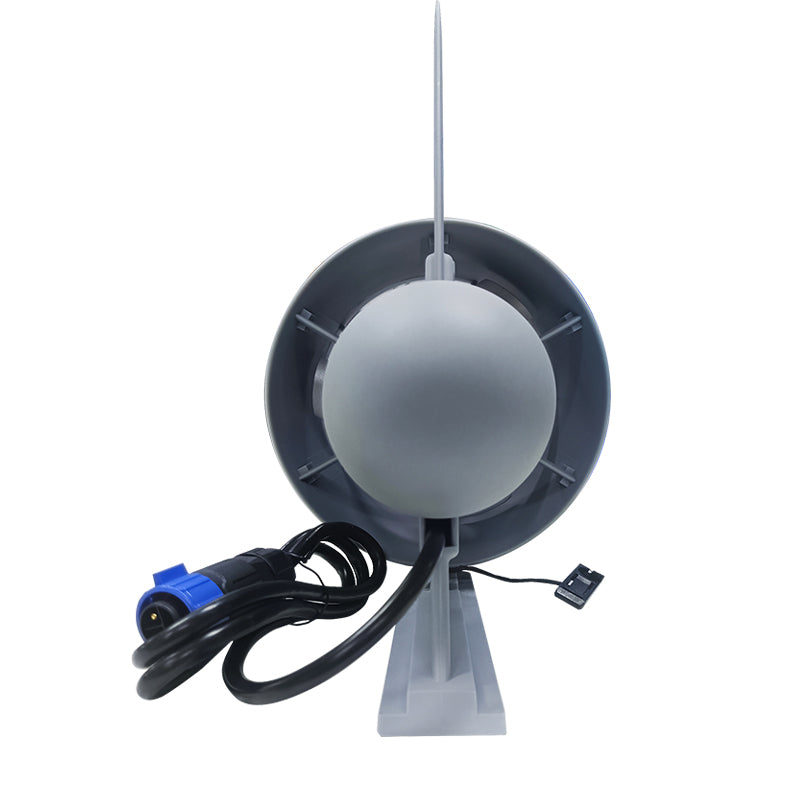

Y01 10km/h 22V 600W Electric Fin Kit Underwater Thruster with Battery for SUP Paddle Board

Y Series Thruster for Paddle Boards and Surfboards

The Y Series thrusters are compatible with various inflatable paddle boards, SUPs, and surfboards. Designed to be both stylish and lightweight, the Y01 and Y02 models meet different needs, from family outings to solo adventures.

Model Y01

• Body Weight: 1.6 kg
• Max Thrust: 13 kg
• Max Speed: 10-12 km/h

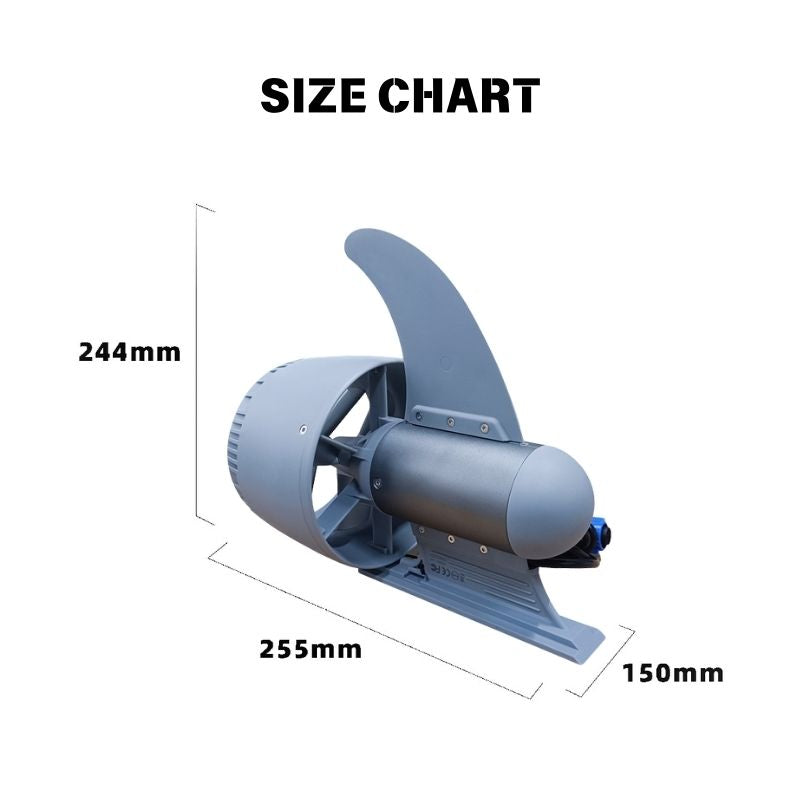

• Size: 244*255*150mm
• Ideal for: Family use with children

Specifications Y01+B1

• Rated Power: 600W
• Gears: 3-speed settings
  • 1st Gear: 6 km/h
  • 2nd Gear: 8 km/h
  • 3rd Gear: 10 km/h
• Endurance:
  • 3rd Gear: 75 minutes
  • 2nd Gear: 120 minutes

Model Y02

• Body Weight: 1.1 kg
• Max Thrust: 10 kg
• Max Speed: 10 km/h
• Size: 238*240*114mm
• Ideal for: Single or double riders

Specifications Y02+B1(click to check)

• Rated Power: 500W
• Gears: 3-speed settings(with a reference load of 100kg)
  • 1st Gear: 4 km/h
  • 2nd Gear: 6 km/h
  • 3rd Gear: 8 km/h
• Endurance:
  • 3rd Gear: 90 minutes
  • 2nd Gear: 180 minutes

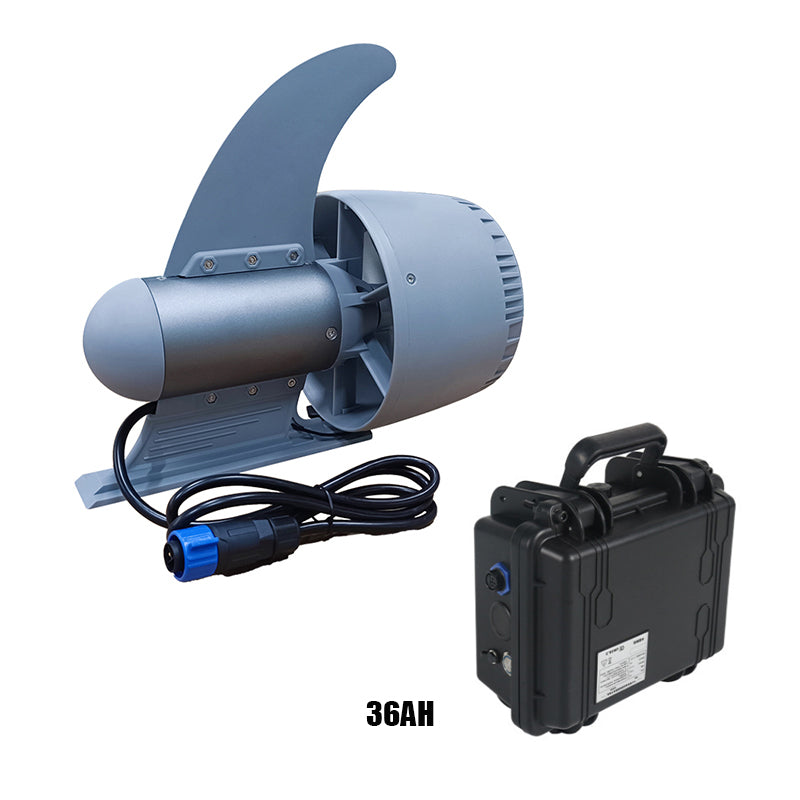

Battery B1:

• • Capacity: 36Ah
  • Weight: 5 kg
  • Nominal Voltage: 22.2V
  • Charging Time: 8 hours
  • Size: 252mm*218mm*122mm

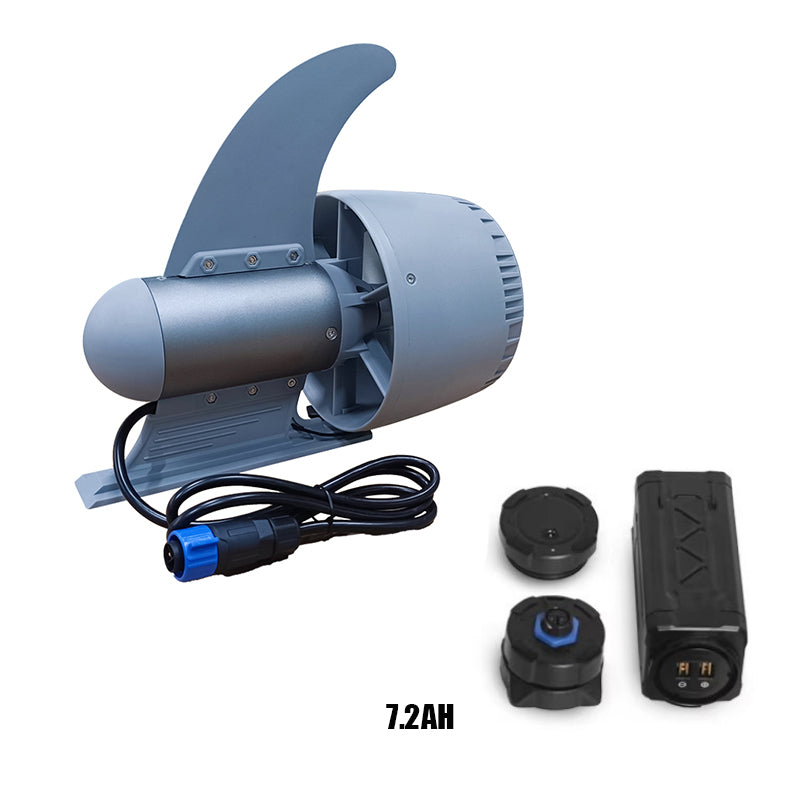

Battery B2:

• • Capacity: 7.2Ah
  • Weight: 1 kg
  • Nominal Voltage: 22.2V
  • Charging Time: 2 hours

Working environments: 0-40°

Input Voltage: AC100-240V

Output Voltage: DC 25.4V

Battery Type: Li Polymer

Charging indicates: red light (charging)/green light(charged)

Speed: 3000r/m

Cable length: 1.2m

Warranty: 6 months

Important Notice:

Shipping fees will be calculated based on dimensional weight (L × W × H ÷ [factor, e.g., 6000])—whichever is greater between actual weight and volumetric weight.

Certifications：

1. International Certifications: CE, FCC, UN38.3, MSDS, ROHS.
2. Domestic Patents: Includes a design patent and six utility model patents.
3. International Patents: Includes design patents in the EU, US, and UK.

Y01 Outboard Paddle Board Propeller

Safety Reminder: Water Activities Safety Guidelines

1. Before using this product, each passenger must wear a life jacket or similar PFD (Personal Flotation Device) certified by a local authority, and carry a paddle.
2. When engaging in activities like paddle boarding or other racing boards, always wear a leash before use.
3. Use this product in water deeper than 0.5 meters, and ensure the environment is safe. If the propeller is entangled with weeds, algae, or fishing nets, please immediately turn off the power and clear the debris.
4. Never insert fingers or any part of your body into the propeller at any time to avoid injury.
5. Non-professionals should avoid paddle boarding or other water activities when waves exceed 0.6 meters, especially in the ocean.
6. Individuals with a history of seasickness should not engage in solo water activities like paddle boarding. If you feel unwell, return to shore as soon as possible.
7. Do not venture too far from the shoreline alone to prevent unexpected incidents.
8. After each use in seawater, rinse the entire unit with fresh water to remove salt and let it air dry in a shaded area to keep the product clean.
9. Please use only the original battery specified for this product. Damage caused by other batteries is the user’s responsibility.
10. Minors under 18 must use paddle boards with motorized assistance only under adult supervision. Adults should also avoid going out on the water alone; it’s best to go with a companion.
